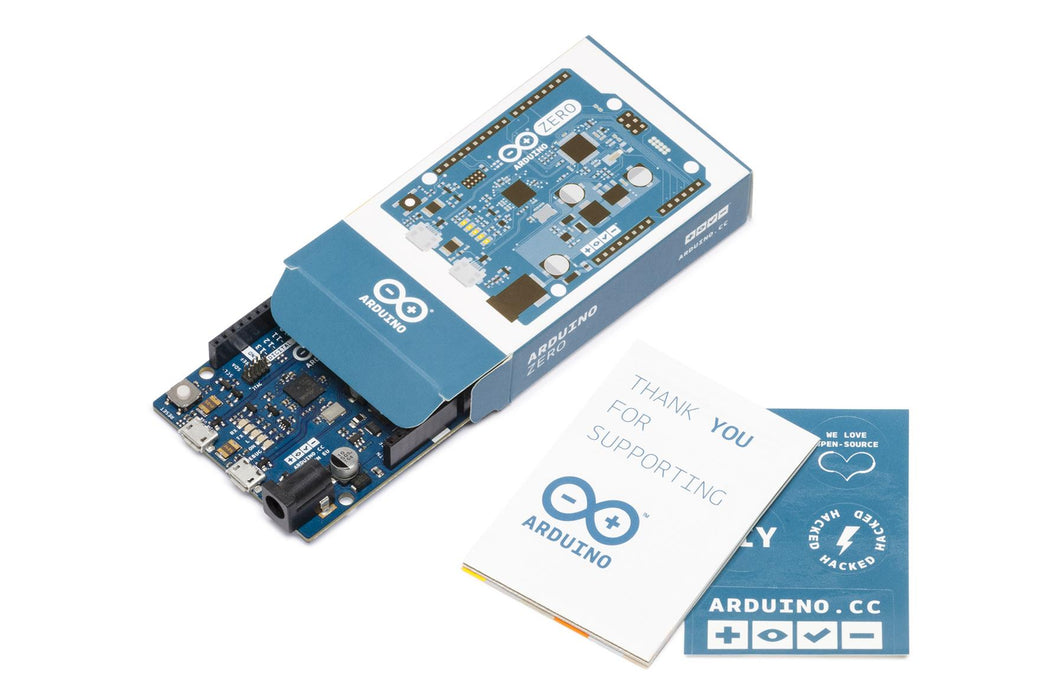

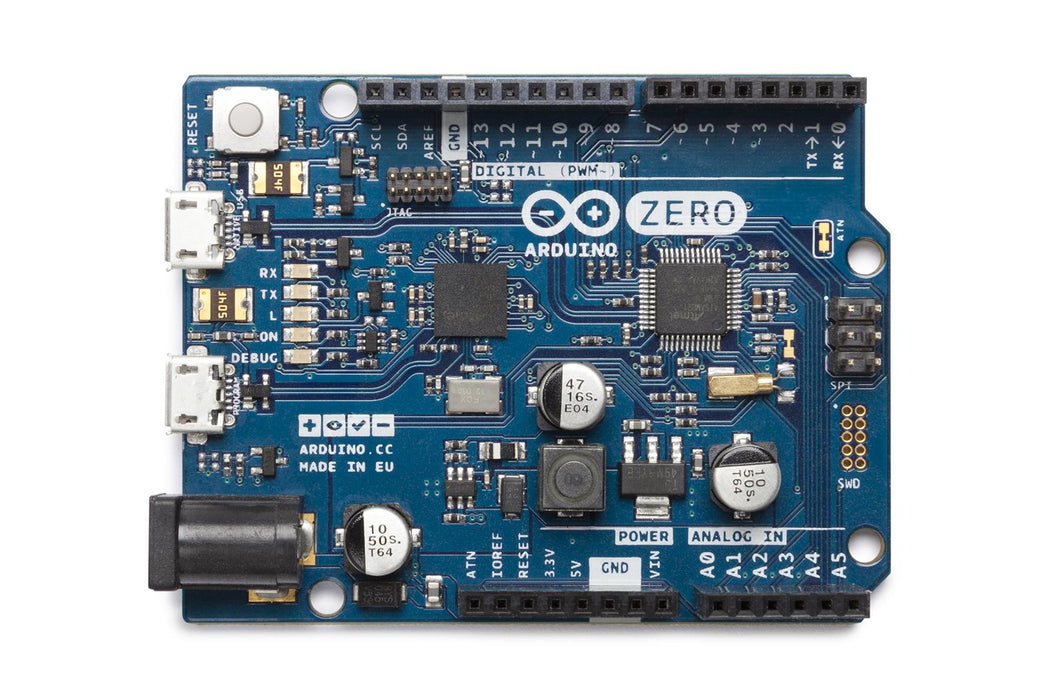

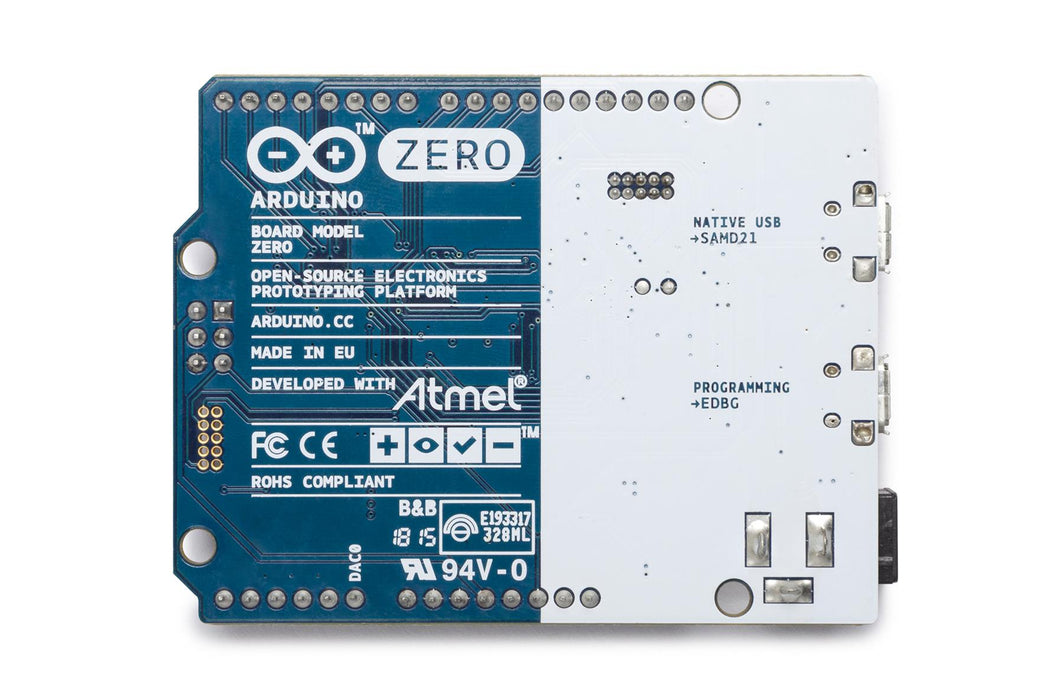

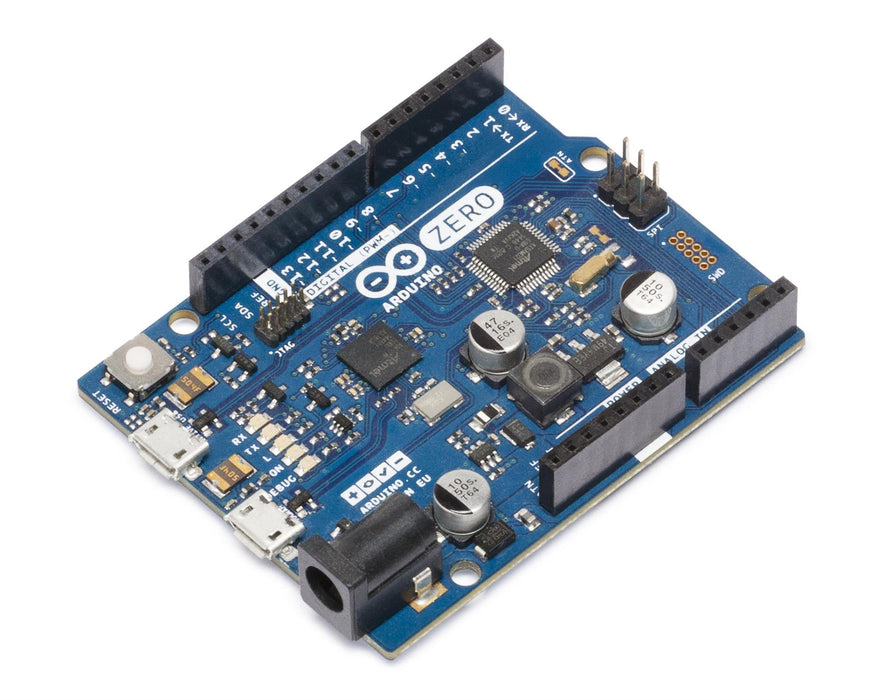

Arduino® Zero

by Arduino
SKU 490731

MPN: ABX00003

Availability:
Out of stock
Sold out
Original price £36.00 - Original price £36.00
Original price
£36.00
£36.00 - £36.00
Current price £36.00
The Zero is a simple and powerful 32-bit extension of the platform established by the UNO. The Zero board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development. The Zero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmel's SAMD21 MCU, which features a 32-bit ARM Cortex M0+ core. One of its most important features is Atmel's Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device and bootloader programming. Unlike most Arduino boards, the Zero runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V and applying voltages higher than 3.3V to any I/O pin could damage the board. The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with a AC-to-DC adapter or battery to get started. The Zero is compatible with all the shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

  • High performance
  • Great for wearables
  • Easy to use
  • Reliable connection
  • Wide application range
  • Specification
    Analog Inputs 6
    Analog Outputs 1 (DAC)
    Clock Speed 48 MHz
    DC Current Per I/O Pin 7mA
    Digital I/O Pins 20 (10 PWM)
    External Interrupts 19
    LED Built In 13
    Memory 256KB Flash
    Microcontroller ATSAMD21G18
    Operating Voltage 3.3V
    SRAM 32KB
    Type Board
    UART Interfaces x2
