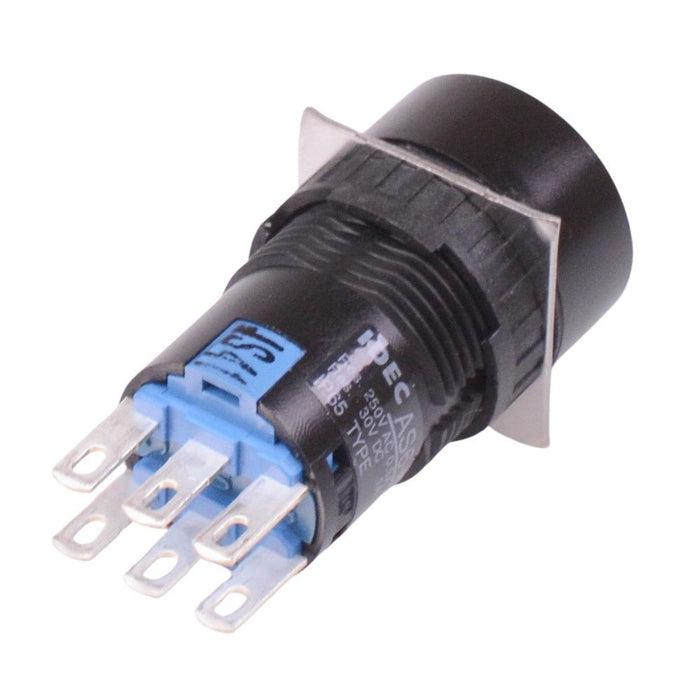

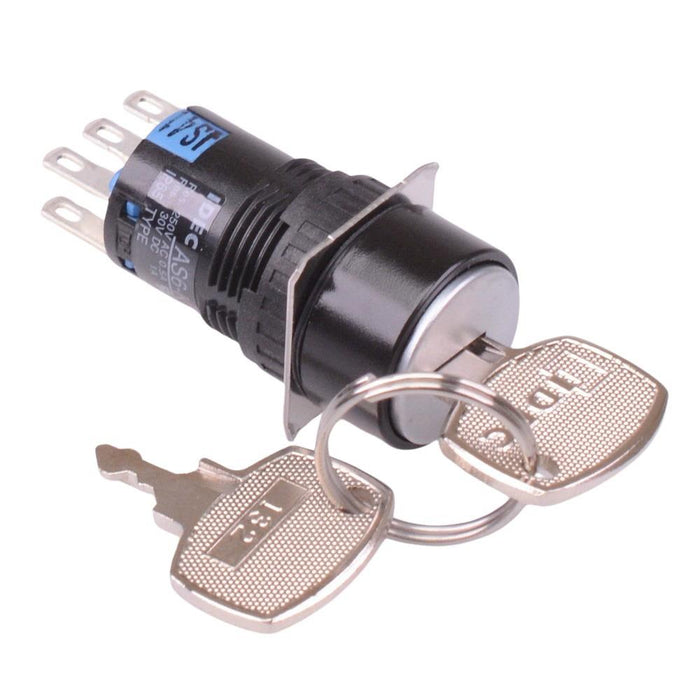

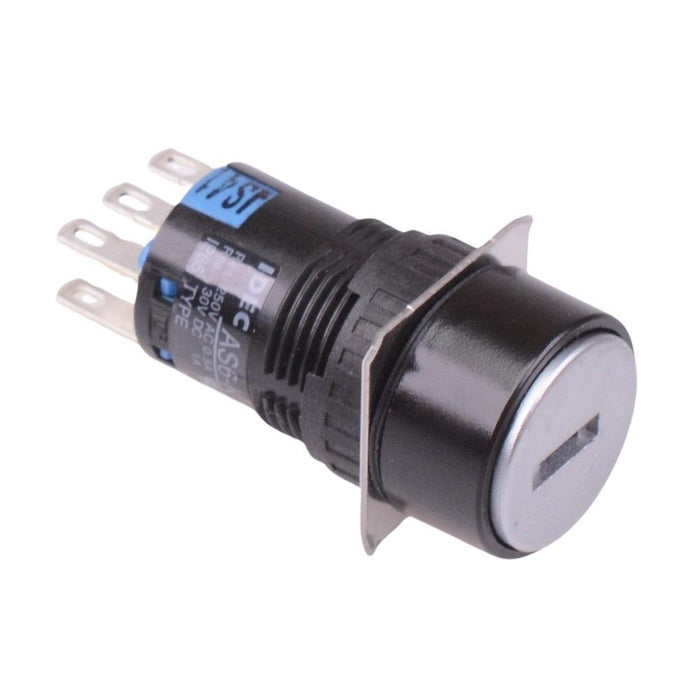

AS6M-33KT2PDC 3 Position 16mm Momentary Key Switch DPDT IDEC
by IDEC
SKU 489120
MPN: AS6M-33KT2PDC
Availability:
Only 5 left!
Original price
£39.40
-
Original price
£39.40
Original price
£39.40
£44.68
£44.68
-
£44.68
Current price
£44.68
The AS6M-33KT2PDC is a 3 position momentary light duty industrial key switch by IDEC, featuring DPDT contacts and IP65 protection rating. The switch features a short 22mm body length and is suitable for 16.2mm panel cut-outs. The switch meets numerous certifications and is designed for a wide range of applications including control panels, automation, use in factories and offices.
Momentary operation 45° 3 positions Key removable in central position Spring return from right and left DPDT contacts IP65 protection rating Contact rating: 3A 250V Panel cut-out: 16.2mm Panel thickness: 0.5-6mm Solder terminals Dimensions: 39 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 196 Days |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 3A 250V |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Head Type | Key |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 3 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 6mm |
| Product Series | A6 |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 250V |
