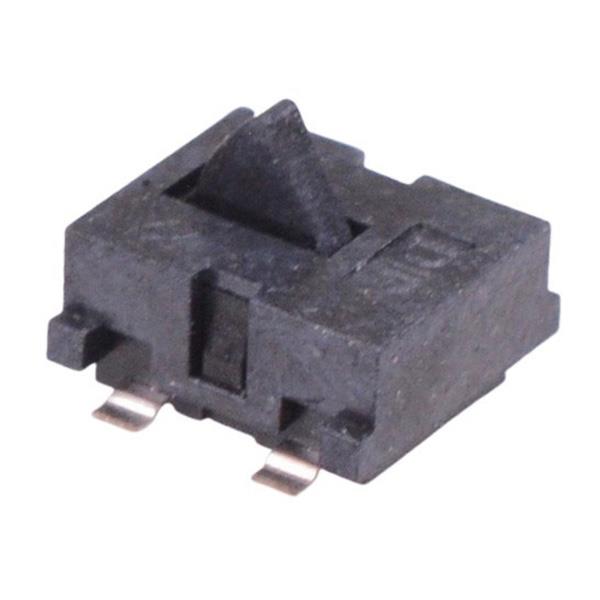

ATE-2-V Vertical Detector Switch Surface Mount 3.8mm Height
by Diptronics
SKU 492473
MPN: ATE-2-V
Availability:
328 in stock
Original price
£1.08
-
Original price
£1.08
Original price
£1.08
£1.08
-
£1.08
Current price
£1.08
The ATE-2-V is a vertical surface mount detector switch featuring 3.8mm height above PCB, supplied on tape packaging. The switch is suitable for applications including use with smoke detectors and detecting disc loading.
Contact rating: 1mA 5VDC Height 3.8mm Body dimensions: 4.7 x 3.8mm (length x width) Operating force: 40gf max Tape packaging
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 Days |
| Contact Rating | 1mA 5VDC |
| Current Rating | 1mA |
| Height | 3.8mm |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 40gf |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.3 x 2.4mm |
| Product Series | ATE |
| Terminal Type | Surface Mount |
| Voltage Rating | 5VDC |
