Automotive Starter Button Push Switch 60A 12VDC A2-24
by SCI
SKU 483198
MPN: A2-24
Availability:
292 in stock
Original price
£3.12
-
Original price
£3.12
Original price
£3.12
£3.12
-
£3.12
Current price
£3.12

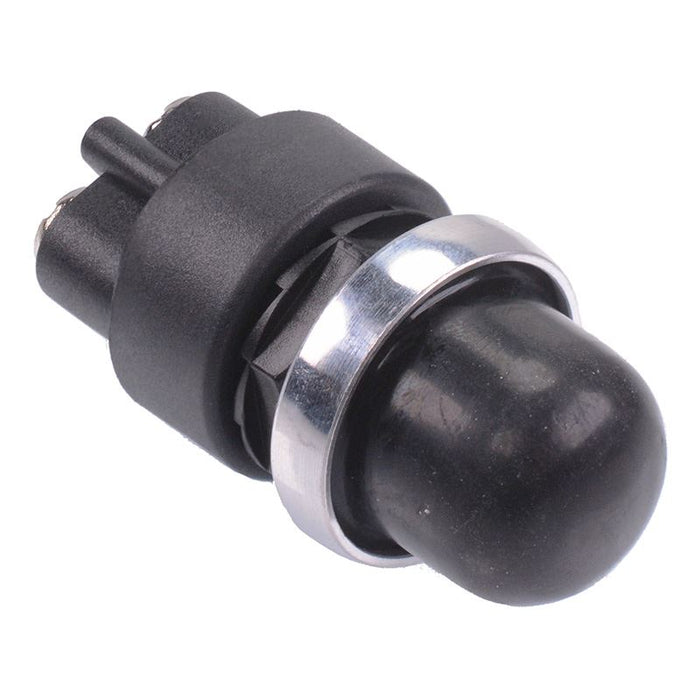

The A2-24 is a starter button push switch featuring M4 screw terminals and 16mm panel cut-out diameter, suitable for 12V automotive applications including cars, bikes and other vehicles.
Off-(On) action SPST contacts M4 screw terminals Plastic body Panel cut-out diameter: 16mm Rating: 60A 12VDC Maximum panel thickness: 4mm Dimensions: 50.1 x 26mm (Length x Diameter)
Specification
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 60A 12VDC |
| Current Rating | 60A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 4mm |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
