AV021003C940T APEM Off-(On) Momentary 22mm Curved Anti Vandal Push Button Switch SPST
by APEM
SKU 487992
MPN: AV021003C940T
Availability:
7 in stock
Original price
£18.16
-
Original price
£18.16
Original price
£18.16
£18.16
£18.16
-
£18.16
Current price
£18.16

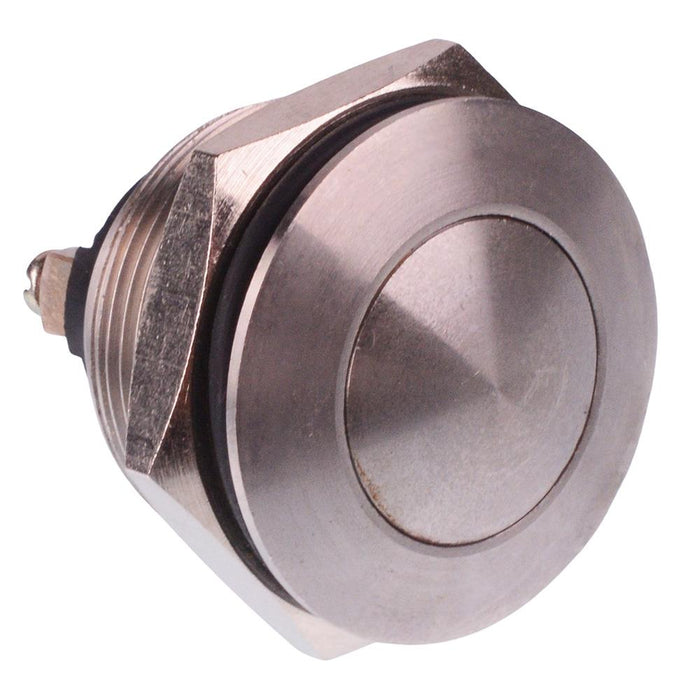

The AV021003C940T is a 22mm anti vandal push button switch with momentary SPST-NO contacts and curved actuator. The switch features a stainless steel body and screw terminals making it suitable for applications requiring a reliable long-lasting switch including security.
SPST-NO contacts Off-(On) momentary function Panel cut-out: 22.2mm Screw terminals Rating: 4A 12VDC Panel thickness: 1-11mm Material: stainless steel
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to 70°C |
| Panel Cut Out | 22.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
