AV031003C910 Momentary 22mm Push Button Vandal Switch SPST 2A 48VDC APEM
by APEM
SKU 485982
MPN: AV031003C910
Availability:
Out of stock
Sold out
Original price
£16.51
-
Original price
£16.51
Original price
£16.51
£16.51
-
£16.51
Current price
£16.51

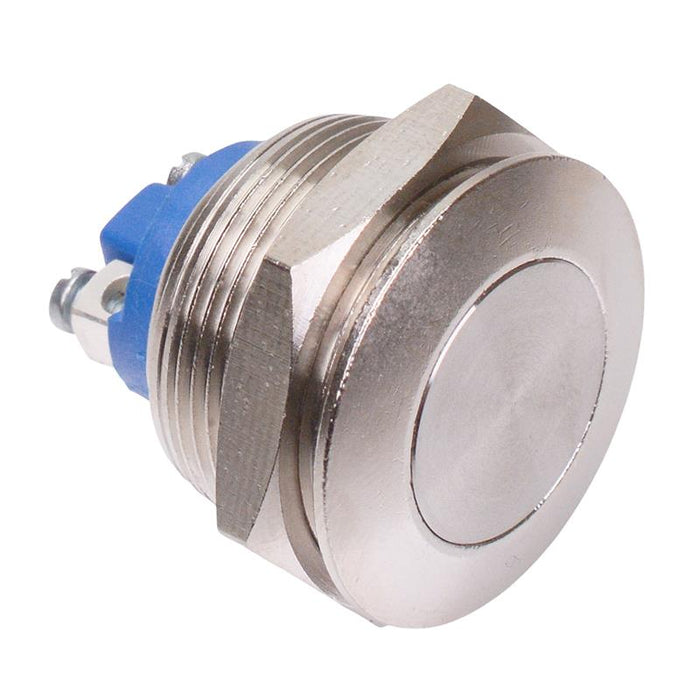

The AV031003C910 is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.
NO SPST contacts Flat actuator Long life Screw terminals Silver plated brass contacts Nickel plated brass brushing Panel cut-out: 22.2mm Rating: 2A 48VDC Panel thickness: 1-11mm Dimensions: 26 x 25mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Nickel Plated Brass |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 7N |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 22.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
