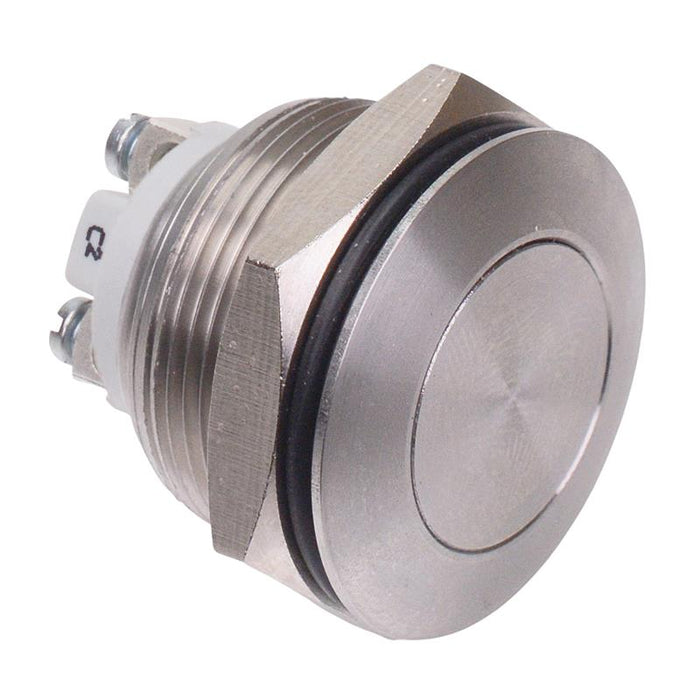

AV031003C940K Momentary 22mm Push Button Vandal Switch SPST IP65 2A 48VDC APEM
by APEM
SKU 485983
MPN: AV031003C940K
Availability:
Only 4 left!
Original price
£33.19
-
Original price
£33.19
Original price
£33.19
£33.19
£33.19
-
£33.19
Current price
£33.19
The AV031003C940K is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a stainless steel bushing sealed to IP65, suitable for applications requiring a reliable and durable switch over a long lifespan.
NO SPST contacts Flat actuator Long life Screw terminals Silver plated brass contacts Stainless steel brushing IP65 protection level Panel cut-out: 22.2mm Rating: 2A 48VDC Panel thickness: 1-11mm Dimensions: 26 x 25mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 7N |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 22.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
