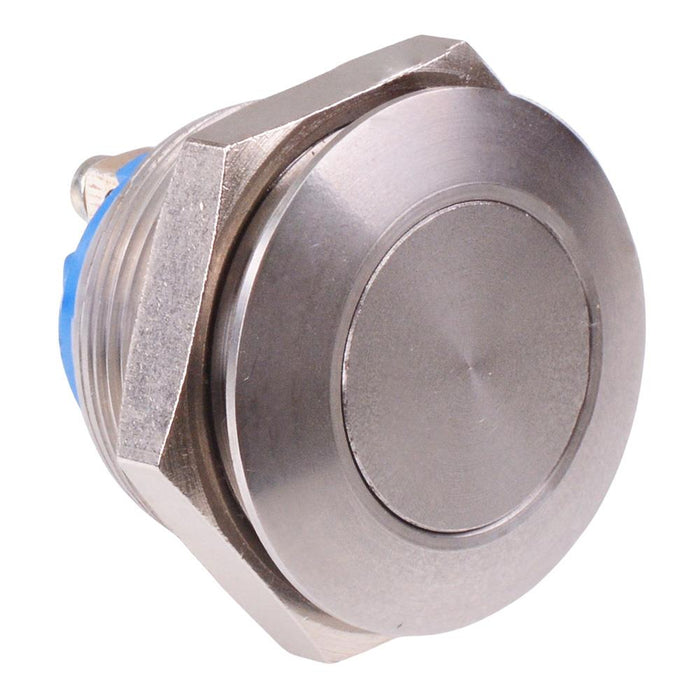

AV031003C940T APEM Off-(On) Momentary 22mm Flat Anti Vandal Push Button Switch SPST
by APEM
SKU 487369
MPN: AV031003C940T
Availability:
62 in stock
Original price
£15.85
-
Original price
£15.85
Original price
£15.85
Inc VAT
£15.85
-
£15.85
Current price
£15.85
Inc VAT
The AV031003C940T is a 22mm anti vandal push button switch with momentary SPST-NO contacts and flat actuator. The switch features a stainless steel body and screw terminals making it suitable for applications requiring a reliable long-lasting switch including security.
SPST-NO contacts Off-(On) momentary function Panel cut-out: 22.2mm Screw terminals Rating: 4A 12VDC Panel thickness: 1-11mm Material: stainless steel
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 4A 12VDC |
| Current rating | 4A |
| Electrical life | 500,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to 70°C |
| Panel cut out | 22.2mm |
| Panel thickness | 1-11mm |
| Product series | AV |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 12VDC |
