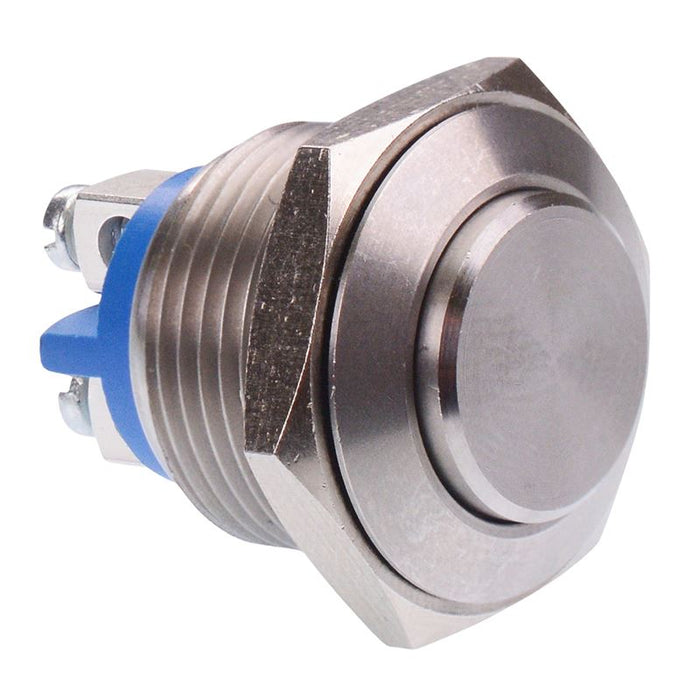

AV0630C940K Momentary 16mm Push Button Vandal Switch SPST IP65 0.2A 48VDC APEM
by APEM
SKU 485984
MPN: AV0630C940K
Availability:
12 in stock
Original price
£19.66
-
Original price
£19.66
Original price
£19.66
£19.66
£19.66
-
£19.66
Current price
£19.66
The AV0630C940K is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a stainless steel bushing sealed to IP65, suitable for applications requiring a reliable and durable switch over a long lifespan.
NO SPST contacts Flat actuator Long life Screw terminals Silver plated brass contacts Stainless steel brushing IP65 protection level Panel cut-out: 16.2mm Rating: 200mA 48VDC Panel thickness: 1-6mm Dimensions: 22.2 x 18mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
