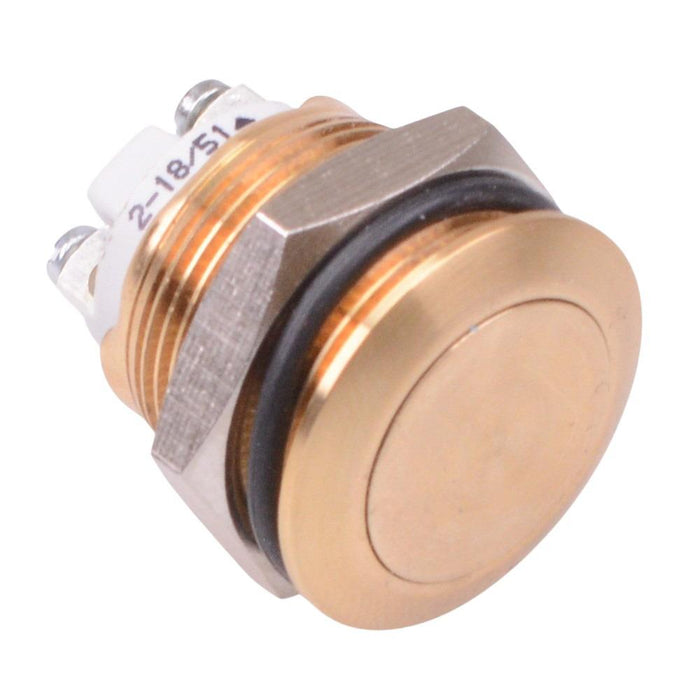

AV091003C990K APEM Gold Momentary 19mm Push Button Vandal Switch SPST IP65 2A 48VDC
by APEM
SKU 489914
MPN: AV091003C990K
Availability:
395 in stock
Original price
£20.42
-
Original price
£20.42
Original price
£20.42
£20.42
-
£20.42
Current price
£20.42

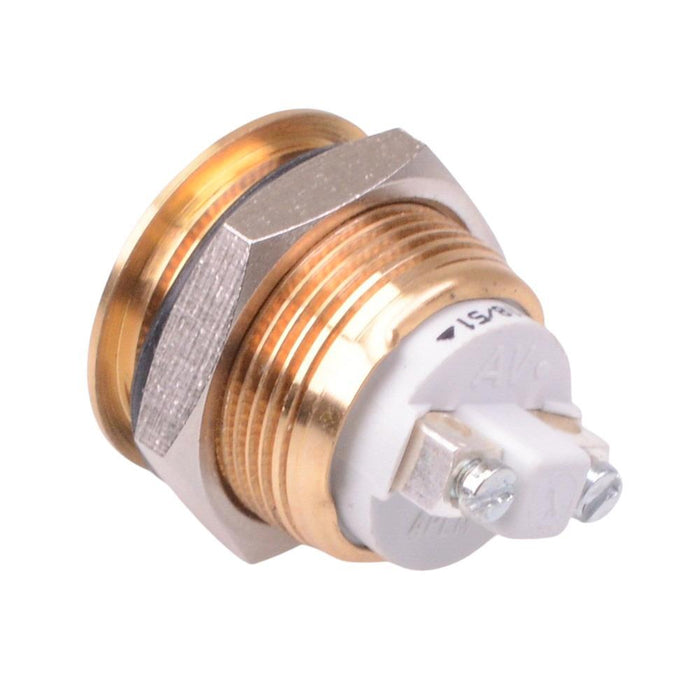

The AV091003C990K is a security vandal resistant push button switch featuring NO momentary contacts and screw terminals. The switch features a brass bushing sealed to IP65, suitable for applications requiring a reliable and durable switch over a long lifespan.
NO SPST contacts Flat actuator Long life Screw terminals Silver plated brass contacts Brass brushing IP65 protection level Panel cut-out: 19.2mm Rating: 2A 48VDC Panel thickness: 1-11mm Dimensions: 26 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Gold |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Brass |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Illuminated | No |
| Material | Brass |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
