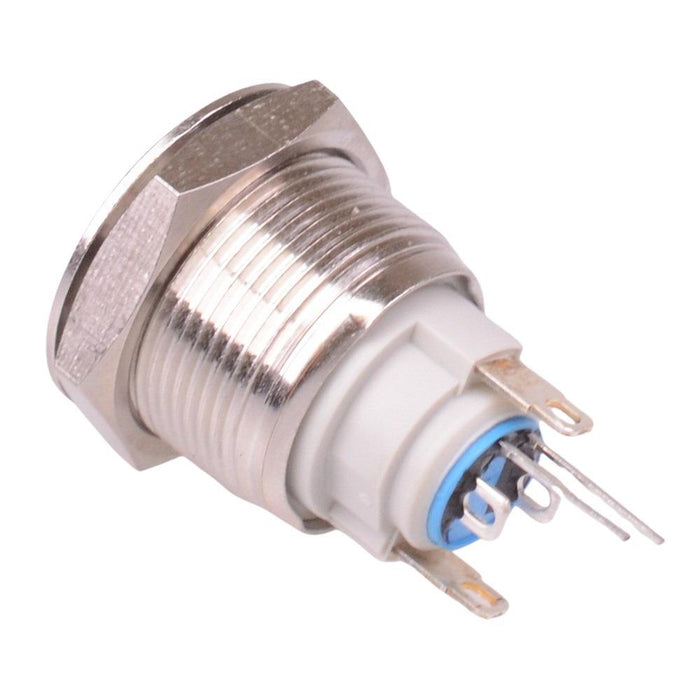

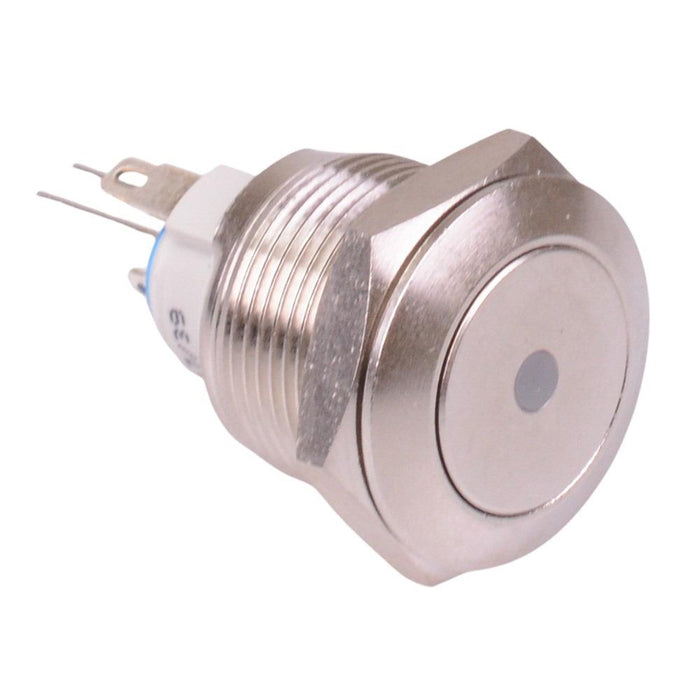

AV091L5EA200 APEM Yellow illuminated 19mm Latching Vandal Push Button Switch SPST
by APEM
SKU 489915
MPN: AV091L5EA200
Availability:
72 in stock
Original price
£23.24
-
Original price
£23.24
Original price
£23.24
£23.24
-
£23.24
Current price
£23.24
The AV091L5EA200 is a illuminated security vandal resistant push button switch featuring latching function and solder lug terminals. The switch features a long life and nickel plated brass bushing, suitable for applications requiring a reliable and durable switch.
2NO/2NC contacts Flat actuator Long life Solder lug terminals Silver contacts Nickel plated brass brushing Panel cut-out: 19.2mm Rating: 2A 48VDC Panel thickness: 1-9mm Diameter: 22mm
Specification
Actuation | Momentary |
Colour | Yellow |
Contact Configuration | 2NO/2NC |
Contact Material | Silver |
Contact Rating | 2A 48VDC |
Current Rating | 2A |
Electrical Life | 500,000 Cycles |
Illuminated | Yes |
Material | Nickel Plated Brass |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -30°C to +70°C |
Panel Cut Out | 19.2mm |
Panel Thickness | 1-9mm |
Product Series | AV |
Switch Operation | On-(On) |
Terminal Type | Solder |
Voltage Rating | 48VDC |
