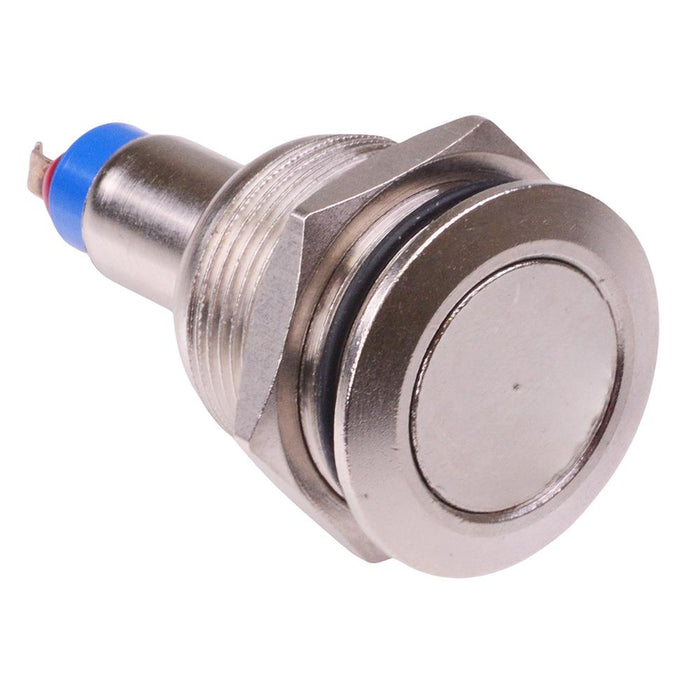

AV09401ZQEK APEM On-Off Latching 19mm Anti Vandal Push Button Switch SPST
by APEM
SKU 487287
MPN: AV09401ZQEK
Back Order Availability: 10 Days
Availability:
100 in stock, ready to be shipped
Original price
£10.67
-
Original price
£10.67
Original price
£10.67
Inc VAT
£10.67
-
£10.67
Current price
£10.67
Inc VAT
The AV09401ZQEK is a 19mm latching anti vandal push button switch featuring SPST contacts and solder terminals. The switch is sealed to IP65 and is suitable for a wide range of applications.
On-Off function SPST contacts Chrome body Panel cut-out: 19.2mm Protection level: IP65 Solder terminals Rating: 2A 48VDC Dimensions: 42 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Illuminated | No |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-11mm |
| Product series | AV |
| Protection level | IP65 |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 48VDC |
