AV099633D200K APEM Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST
by APEM
SKU 488071
MPN: AV099633D200K
Availability:
20 in stock, ready to be shipped
Original price
£8.14
-
Original price
£8.14
Original price
£8.14
Inc VAT
£8.14
-
£8.14
Current price
£8.14
Inc VAT

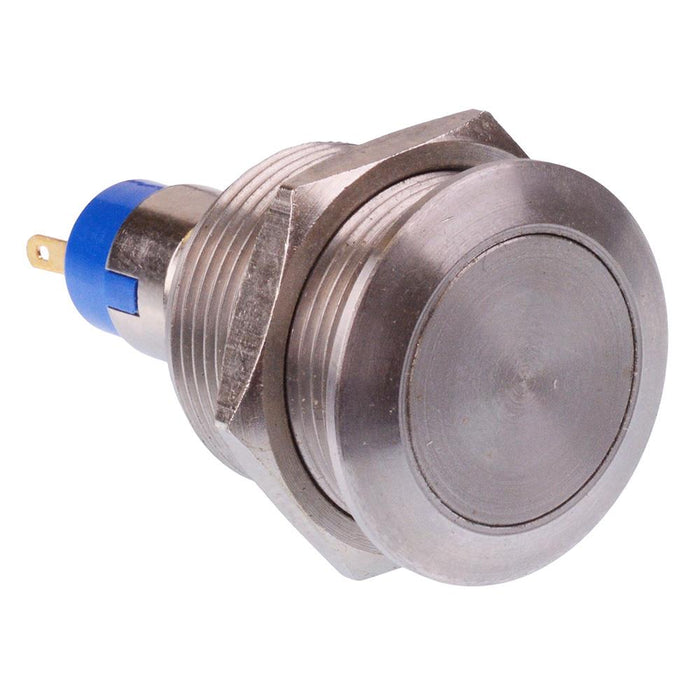

The AV099633D200K is a 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch is suitable for a wide range of applications.
Off-(On) momentary function SPST contacts Nickel plated brass body Panel cut-out: 19.2mm Solder terminals Rating: 2A 48VDC Dimensions: 41 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Contact configuration | SPST |
| Contact rating | 2A 48VDC |
| Current rating | 2A |
| Illuminated | No |
| Material | Nickel Plated Brass |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-11mm |
| Product series | AV |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 48VDC |
