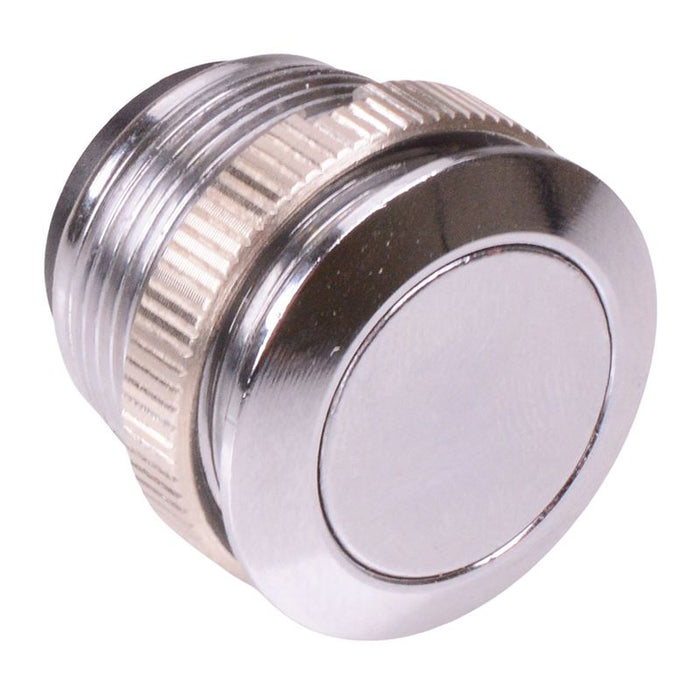

AV09C703D220K APEM Off-(On) Momentary 19mm Anti Vandal Push Button Switch SPST - No Nuts
by APEM
SKU 488083
MPN: AV09C703D220K
Availability:
17 in stock
Original price
£7.27
-
Original price
£7.27
Original price
£7.27
Inc VAT
£7.27
-
£7.27
Current price
£7.27
Inc VAT
The AV09C703D220K is a 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a chrome plated brass body and is suitable for a wide range of applications.
Off-(On) momentary function SPST contacts Chrome plated brass body Tactile feedback Panel cut-out: 19.2mm Panel thickness: 1-6mm Solder terminals Rating: 50mA 24VDC
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Gold Plated |
| Contact rating | 0.05A 24VDC |
| Current rating | 0.05A |
| Illuminated | No |
| Material | Chrome Plated Brass |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 24VDC |
