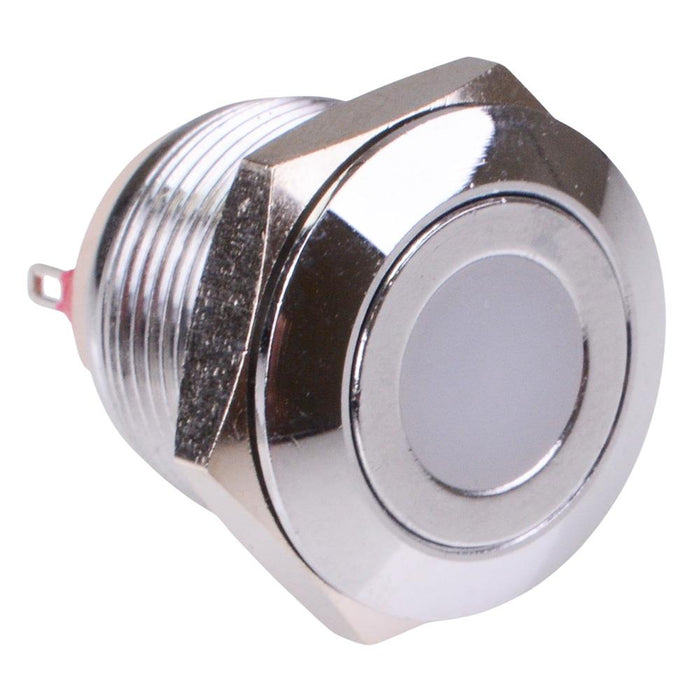

AV09C7L3D2202 APEM Red/Green LED Off-(On) Momentary 19mm Push Button Switch SPST
by APEM
SKU 487384
MPN: AV09C7L3D2202
Availability:
Only 2 left!
Original price
£23.24
-
Original price
£23.24
Original price
£23.24
£26.35
£26.35
-
£26.35
Current price
£26.35
The AV09C7L3D2202 is an illuminated 19mm momentary anti vandal push button switch featuring SPST contacts and solder terminals. The switch features a red/green bi-colour LED which can be alternated by switching the polarity. The switch features a chrome plated brass body and is suitable for a wide range of applications.
Red/Green bi-colour 2.2V LED Off-(On) momentary function SPST contacts Chrome plated brass body Tactile feedback Panel cut-out: 19.2mm Panel thickness: 1-6mm Solder terminals Rating: 50mA 24VDC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 0.05A 24VDC |
| Current Rating | 0.05A |
| Illuminated | Yes |
| Illumination Colour | Red / Green |
| Illumination Voltage | 2.2V |
| Material | Chrome Plated Brass |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
