AV1611A240X2338 APEM On-Off 16mm Latching Anti Vandal Push Button Switch SPST
by APEM
SKU 487729
MPN: AV1611A240X2338
Availability:
21 in stock
Original price
£11.06
-
Original price
£11.06
Original price
£11.06
Inc VAT
£11.06
-
£11.06
Current price
£11.06
Inc VAT

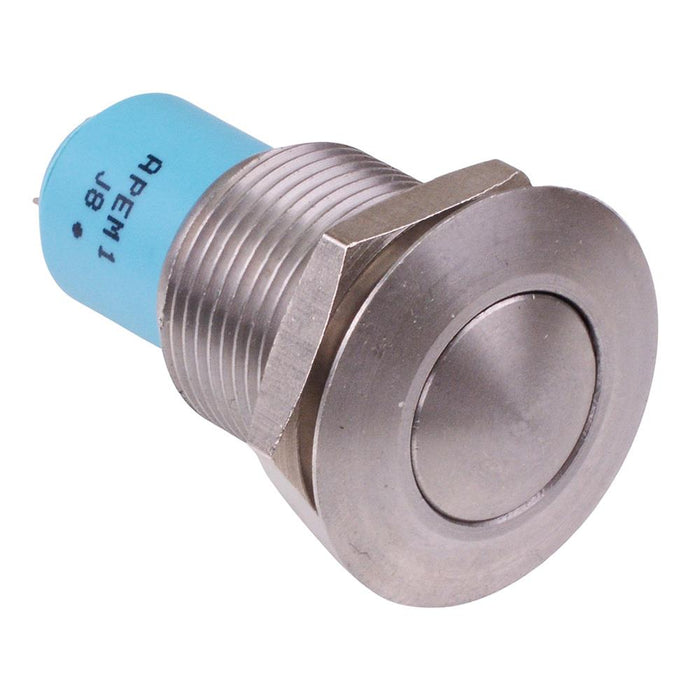

The AV1611A240X2338 is a latching anti vandal push button switch by APEM featuring a stainless steel body and 16mm bushing. The switch features SPST contacts and curved actuator suitable for a wide range of applications.
SPST contacts On-Off function Panel cut-out: 16.2mm Panel thickness: 1-12mm Solder terminals Stainless steel body Curved actuator Rating: 1A 24VDC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 1A 24VDC |
| Current rating | 1A |
| Electrical life | 40,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +70°C |
| Panel cut out | 16.2mm |
| Panel thickness | 1-12mm |
| Product series | AV |
| Switch operation | On-Off |
| Terminal type | Solder |
| Voltage rating | 24VDC |
