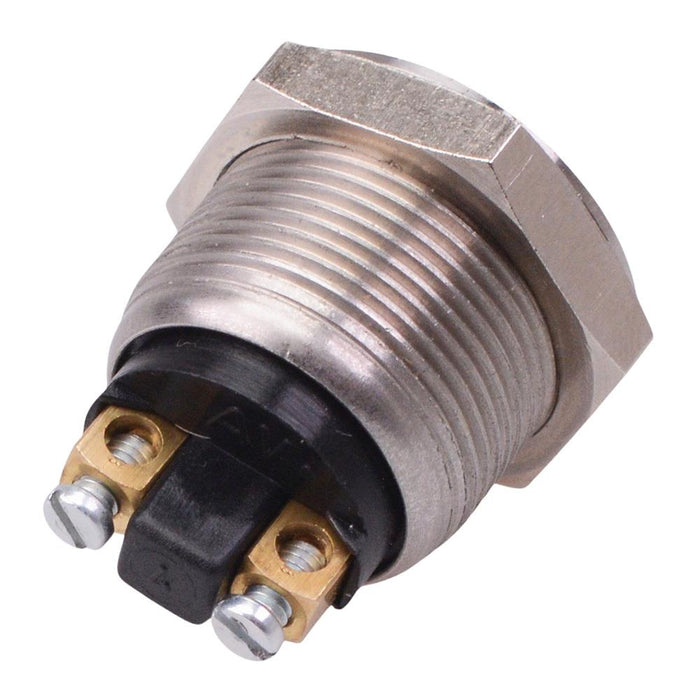

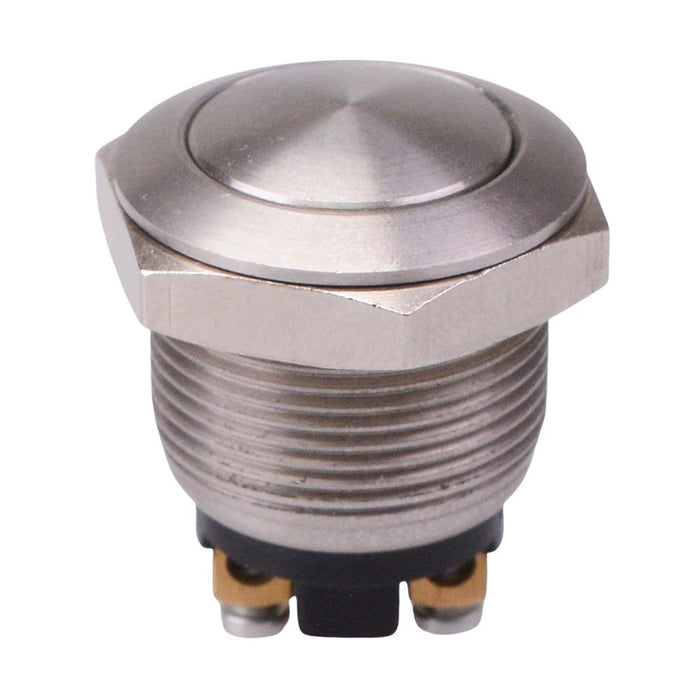

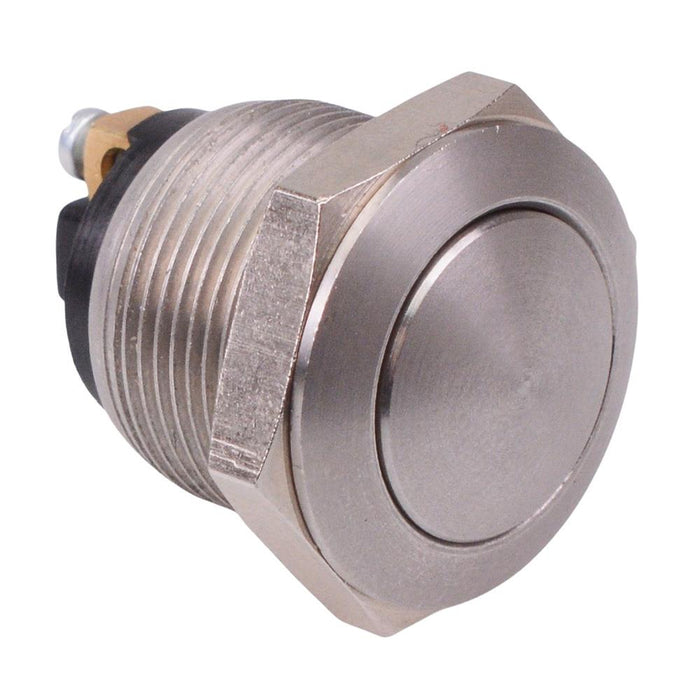

AV191003A940 Momentary 19mm Push Button Vandal Switch SPST 4A 12VDC APEM
by APEM
SKU 493031
MPN: AV191003A940
Availability:
2494 in stock
Original price
£4.40
-
Original price
£4.40
Original price
£4.40
£4.40
-
£4.40
Current price
£4.40
The AV191003A940 is a security vandal resistant push button switch featuring NO momentary contacts and silver screw terminals. The switch features a long life and stainless steel bushing, suitable for applications requiring a reliable and durable switch.
SPST-NO contacts Curved actuator Long life Screw terminals Silver contacts Stainless steel brushing Panel cut-out: 19.2mm Rating: 4A 12VDC Panel thickness: 1-11mm Dimensions: 27.6 x 22mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 4A 12VDC |
| Current Rating | 4A |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5N |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-11mm |
| Product Series | AV |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
