AV22PNA54 APEM Gold Mushroom 22mm Security Push Button Switch SPST

by APEM
SKU 489923

MPN: AV22PNA54

Availability:
Only 5 left!
Original price £47.44 - Original price £47.44
Original price
£47.44
£47.44 - £47.44
Current price £47.44

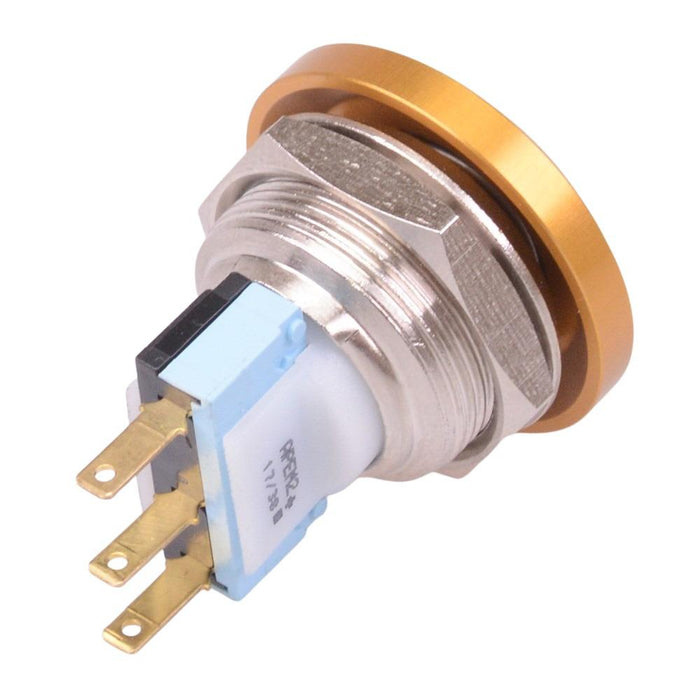

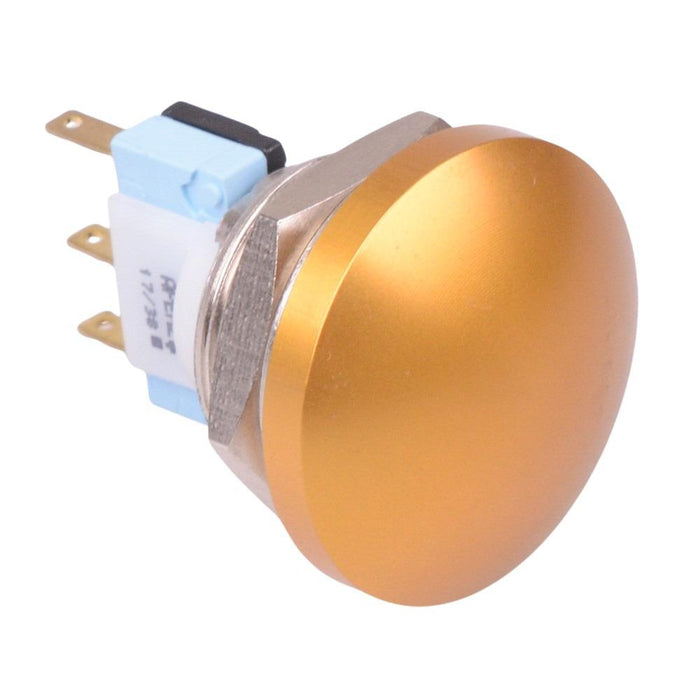

The AV22PNA54 is a gold anodized mushroom head push button switch featuring combined NO and NC contacts and momentary operation. The switch features a 22mm bushing and is sealed to IP65 making it suitable for a wide range of applications. The switch features quick connect terminals and 5A 250VAC rating making it ideal for applications requiring an attractive, robust and durable switch.

  • Large 30mm mushroom head
  • Combined NO/NC contacts
  • Gold anodized actuator
  • Long life
  • Sealed to IP65
  • Rating: 5A 250VAC
  • Panel cut-out: 22.2mm
  • Panel thickness: 1-6mm
  • Quick connect 2.80.5mm terminals
  • Dimensions: 35.8 x 30mm (height x diameter)
  • Specification
    Actuation Momentary
    Colour Gold
    Contact Configuration NO/NC
    Contact Material Silver/Nickel Alloy
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 1,000,000 Cycles
    Illuminated No
    Material Nickel Plated Brass
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -20°C to +55°C
    Panel Cut Out 22.2mm
    Panel Thickness 1-6mm
    Product Series AV
    Protection Level IP65
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
