AV3V22F202084BK APEM Green LED 24VDC Momentary NO/NC Push Button Vandal Switch IP67

by APEM
SKU 489924

MPN: AV3V22F202084BK

Availability:
6 in stock
Original price £29.28 - Original price £29.28
Original price
£29.28
£29.28 - £29.28
Current price £29.28

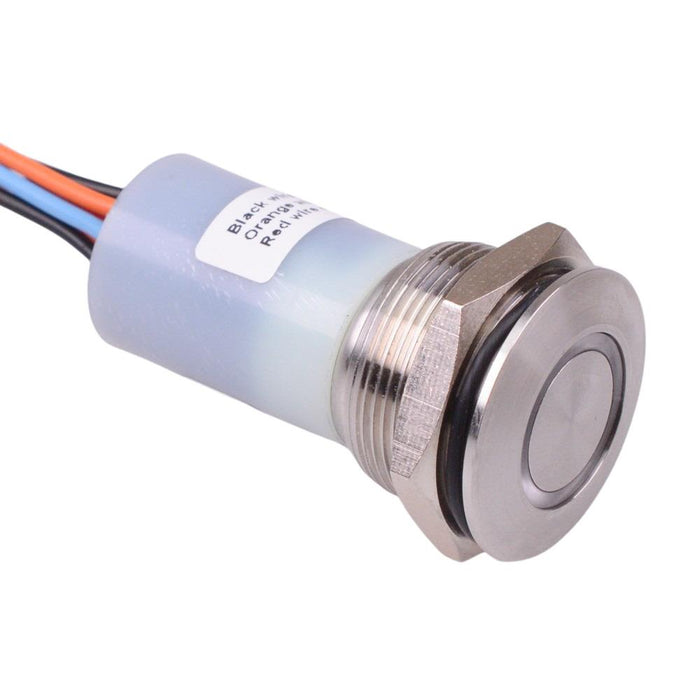

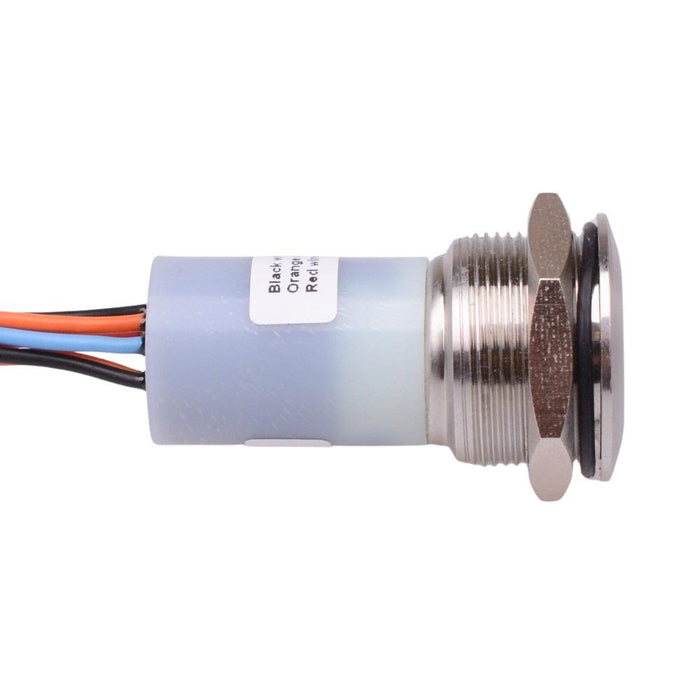

The AV3V22F202084BK is an illuminated prewired security vandal resistant 19mm push button switch with momentary NO/NC contacts and green LED. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Green 24V LED
  • Long life
  • 20cm flying leads
  • Silver contacts
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Diameter: 22mm
  • Specification
    Actuation Momentary
    Colour Green
    Contact Configuration NO/NC
    Contact Material Silver
    Contact Rating 1A 30VDC
    Current Rating 1A
    Electrical Life 250,000 Cycles
    Illuminated Yes
    Illumination Voltage 24VDC
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -30°C to +85°C
    Panel Cut Out 19.2mm
    Panel Thickness 1-6mm
    Product Series AV
    Protection Level IP67
    Switch Operation On-(On)
    Terminal Type Flying Leads
    Voltage Rating 30VDC
