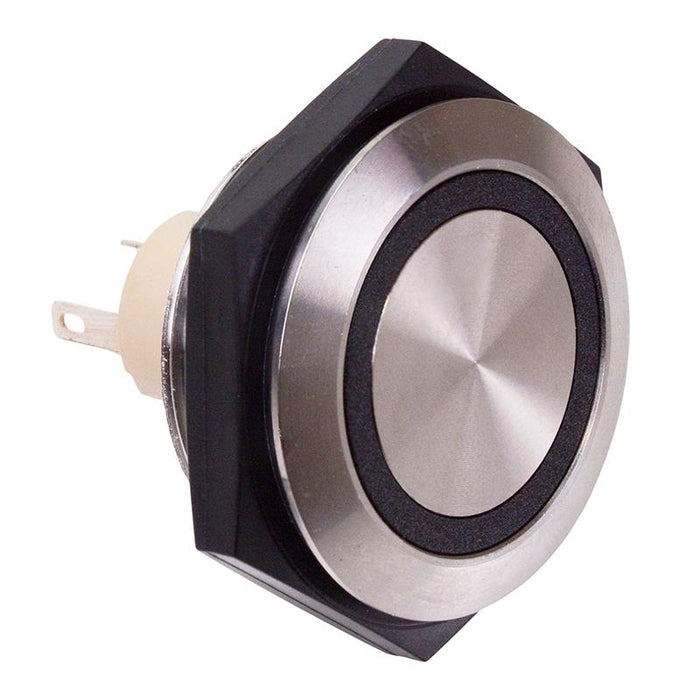

AV50022000024BK Momentary 30mm Push Button Vandal Switch SPDT IP67 1A 30VDC APEM

by APEM
SKU 485987

MPN: AV50022000024BK

Availability:
Only 5 left!
Original price £51.10 - Original price £51.10
Original price
£51.10
£51.10 - £51.10
Current price £51.10
The AV50022000024BK is a security vandal resistant 30mm push button switch with momentary NO/NC contacts and large actuator. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Flat actuator
  • Long life
  • Solder / quick connect terminals
  • Silver contacts
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 30.2mm
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Dimensions: 34.5 x 36mm (length x diameter)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Rating 1A 30VDC
    Current Rating 1A
    Electrical Life 250,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Stainless Steel
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 5N
    Operating Temperature -30°C to +85°C
    Panel Cut Out 30.2mm
    Panel Thickness 1-6mm
    Product Series AV
    Protection Level IP67
    Terminal Type Quick Connect
    Voltage Rating 30VDC
