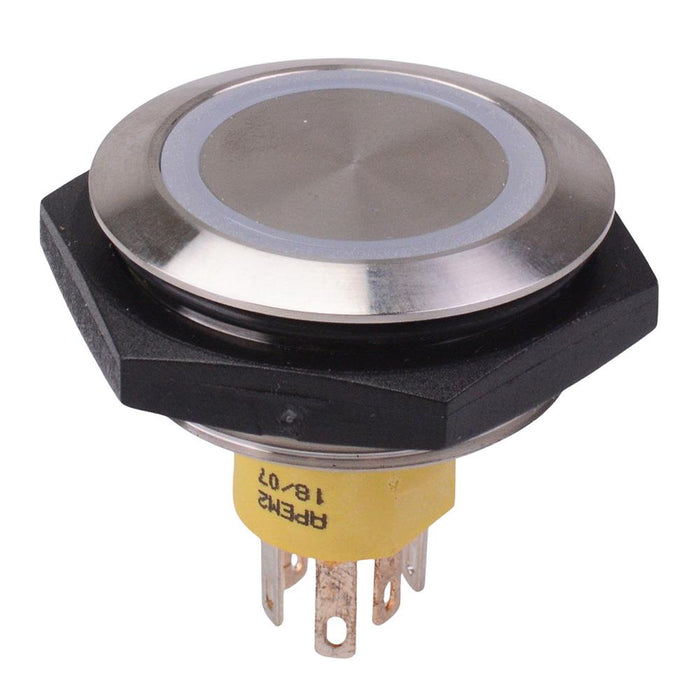

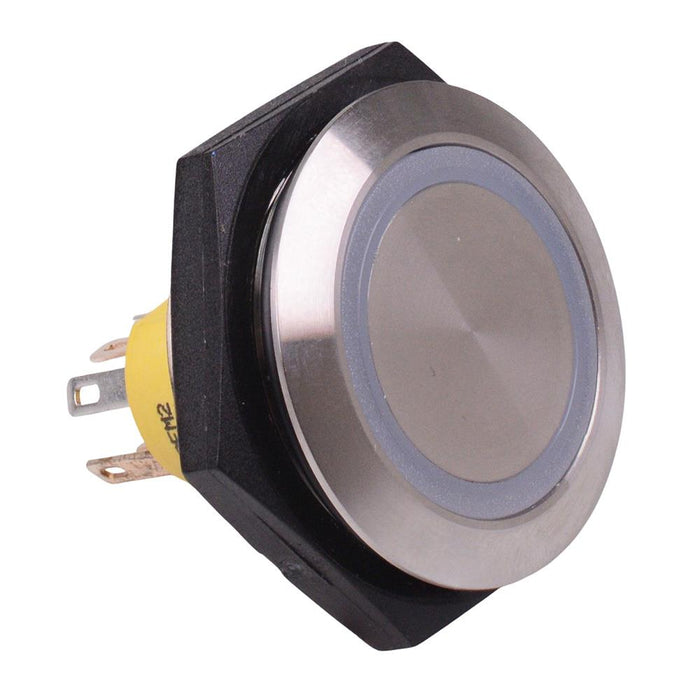

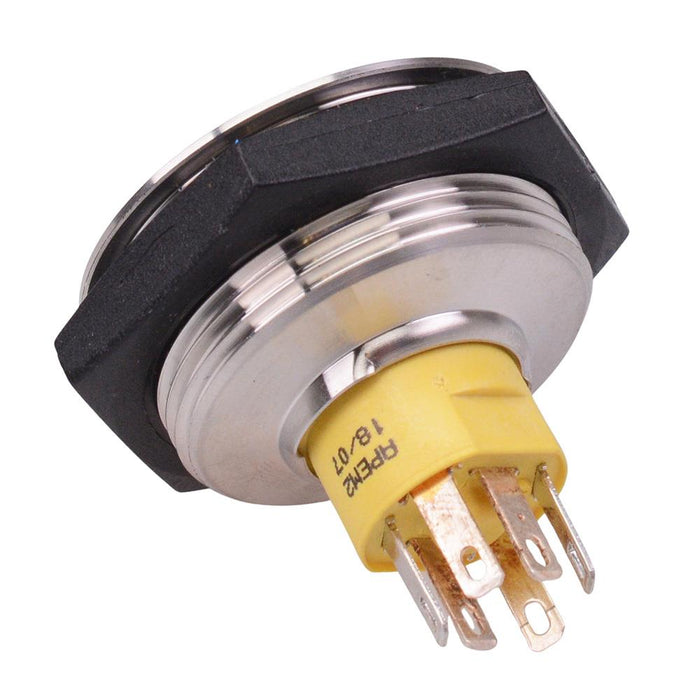

AV55022000074BK APEM Yellow LED Momentary 30mm Push Button Vandal Switch NO/NC IP67
by APEM
SKU 489925
MPN:
Availability:
33 in stock
Original price
£43.46
-
Original price
£43.46
Original price
£43.46
£43.46
£43.46
-
£43.46
Current price
£43.46
The AV55022000074BK is an illuminated security vandal resistant 30mm push button switch with momentary NO/NC contacts and large actuator. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Yellow 2V LED Flat actuator Long life Solder / quick-connect terminals Silver contacts Stainless steel brushing IP67 protection level Panel cut-out: 30.2mm Rating: 1A 30VDC Panel thickness: 1-6mm Dimensions: 34.5 x 34mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Yellow |
| Contact Configuration | NO/NC |
| Contact Material | Silver |
| Contact Rating | 1A 30VDC |
| Current Rating | 1A |
| Electrical Life | 250,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 2VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Panel Cut Out | 30.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 30VDC |
