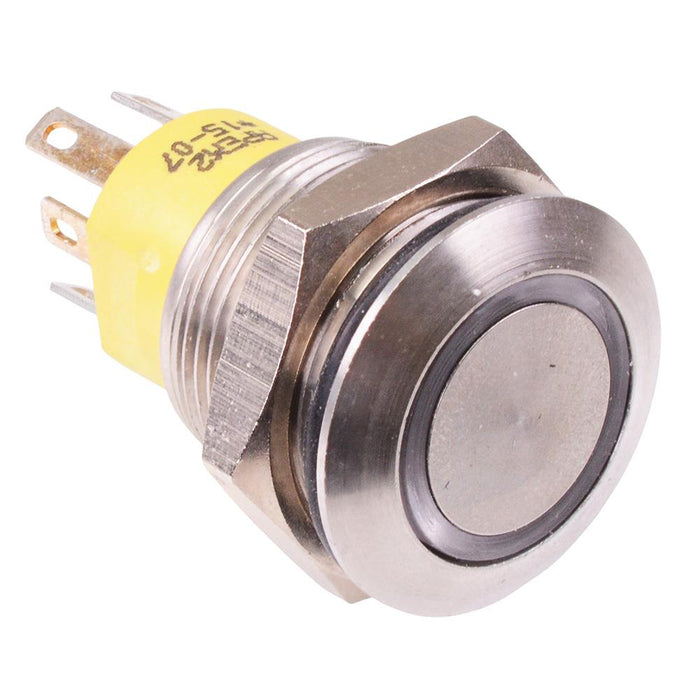

AV950220000840K APEM Yellow LED 19mm Momentary Anti Vandal Push Button Switch NO/NC
by APEM
SKU 487770
MPN: AV950220000840K
Availability:
22 in stock
Original price
£19.94
-
Original price
£19.94
Original price
£19.94
Inc VAT
£19.94
-
£19.94
Current price
£19.94
Inc VAT
The AV950220000840K is an illuminated ring 19mm anti vandal push button switch featuring IP67 sealing and NO/NC contacts. The switch features an attractive and durable stainless steel design making it suitable for a wide range of applications including security.
NO/NC contacts Momentary function Yellow 2V 20mA LED Panel cut-out: 19.2mm Solder/quick connect terminals Rating: 1A 30VDC Panel thickness: 1-6mm Material: stainless steel Protection level: IP67
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Yellow |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 250,000 Cycles |
| Illuminated | Yes |
| Illumination colour | Yellow |
| Illumination voltage | 2V |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 5N |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 19.2mm |
| Panel thickness | 1-6mm |
| Product series | AV |
| Protection level | IP67 |
| Terminal type | Quick Connect |
| Voltage rating | 30VDC |
