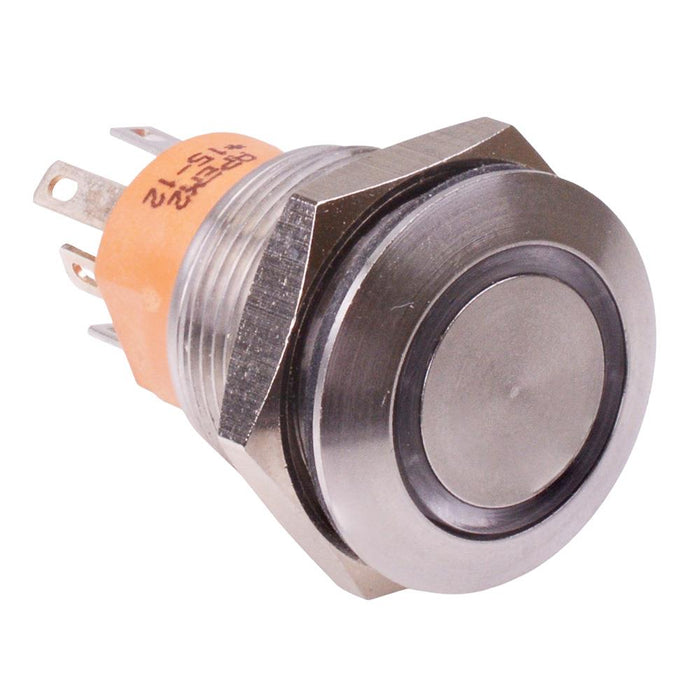

AV990220000840K APEM Amber LED 19mm Momentary Anti Vandal Push Button Switch NO/NC

SKU 487270

MPN: AV990220000840K

166 in stock
Original price £20.24 - Original price £20.24
Original price
£20.24 Inc VAT
£20.24 - £20.24
Current price £20.24 Inc VAT
The AV990220000840K is an illuminated ring 19mm anti vandal push button switch featuring IP67 sealing and NO/NC contacts. The switch features an attractive and durable stainless steel design making it suitable for a wide range of applications including security.

  • NO/NC contacts
  • Momentary function
  • Amber 2.3V 20mA LED
  • Panel cut-out: 19.2mm
  • Solder/quick connect terminals
  • Rating: 1A 30VDC
  • Panel thickness: 1-6mm
  • Material: stainless steel
  • Protection level: IP67
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Colour Amber
    Contact configuration SPDT
    Contact material Silver
    Contact rating 1A 30VDC
    Current rating 1A
    Electrical life 250,000 Cycles
    Illuminated Yes
    Illumination colour Amber
    Illumination voltage 2.3V
    Material Stainless Steel
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 5N
    Operating temperature -30°C to +85°C
    Panel cut out 19.2mm
    Panel thickness 1-6mm
    Product series AV
    Protection level IP67
    Terminal type Quick Connect
    Voltage rating 30VDC
