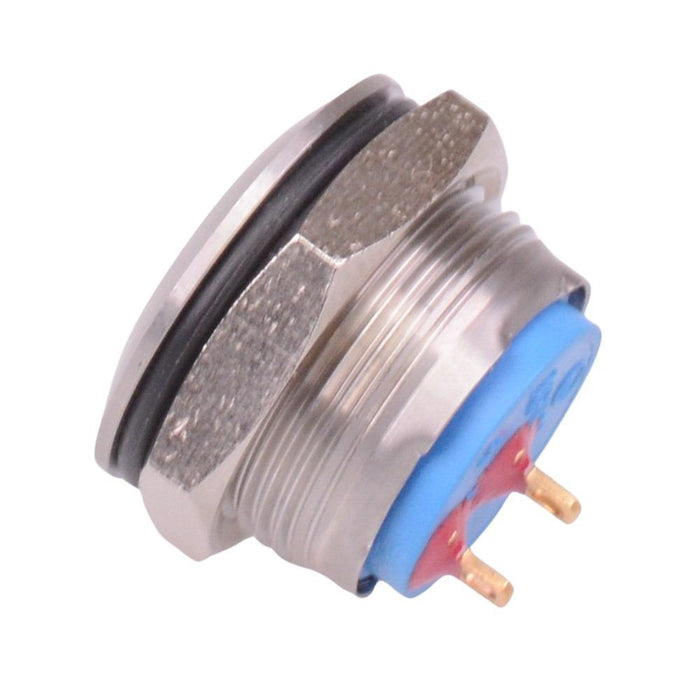

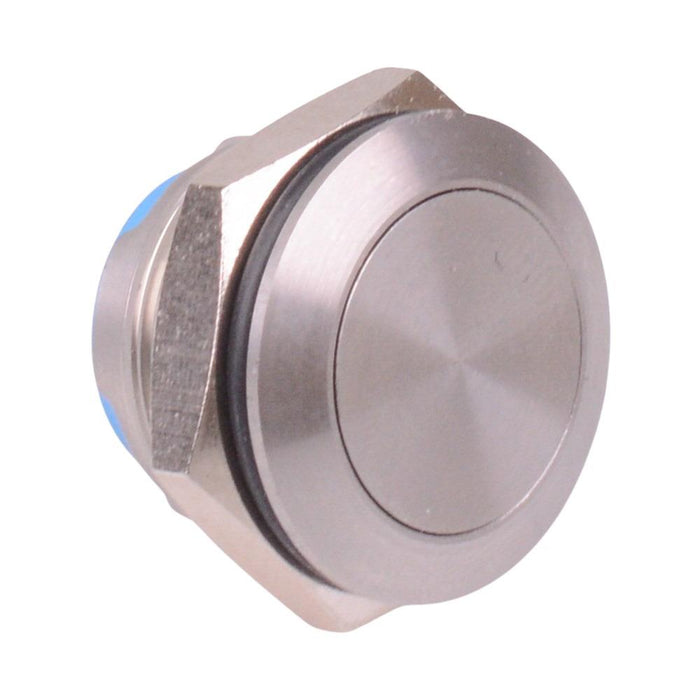

AV9S0D240K APEM Momentary 19mm Stainless Steel Vandal Push Button Switch IP67
by APEM
SKU 489930
MPN: AV9S0D240K
Availability:
Only 5 left!
Original price
£18.18
-
Original price
£18.18
Original price
£18.18
£18.18
£18.18
-
£18.18
Current price
£18.18
The AV9S0D240K is a security vandal resistant push button switch with solder terminals and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.
Momentary NO/NC contacts Flat actuator Long life Solder terminals Gold plated contacts Stainless steel brushing IP67 protection level Panel cut-out: 19.2mm Rating: 50mA 24VDC Panel thickness: 1-6mm Dimensions: 18.0 x 22.0mm (length x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPST |
| Contact Material | Gold Plated |
| Contact Rating | 50mA 24VDC |
| Current Rating | 0.05A |
| Electrical Life | 1,000,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +70°C |
| Panel Cut Out | 19.2mm |
| Panel Thickness | 1-6mm |
| Product Series | AV |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
