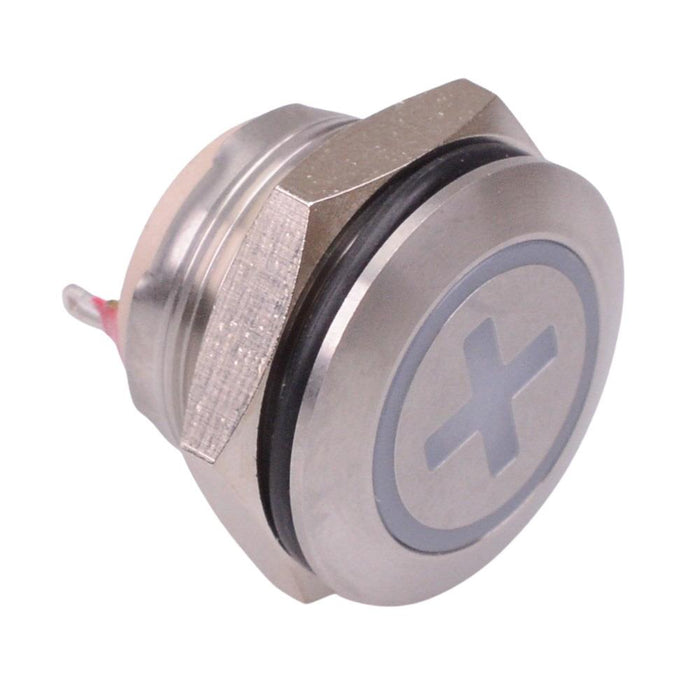

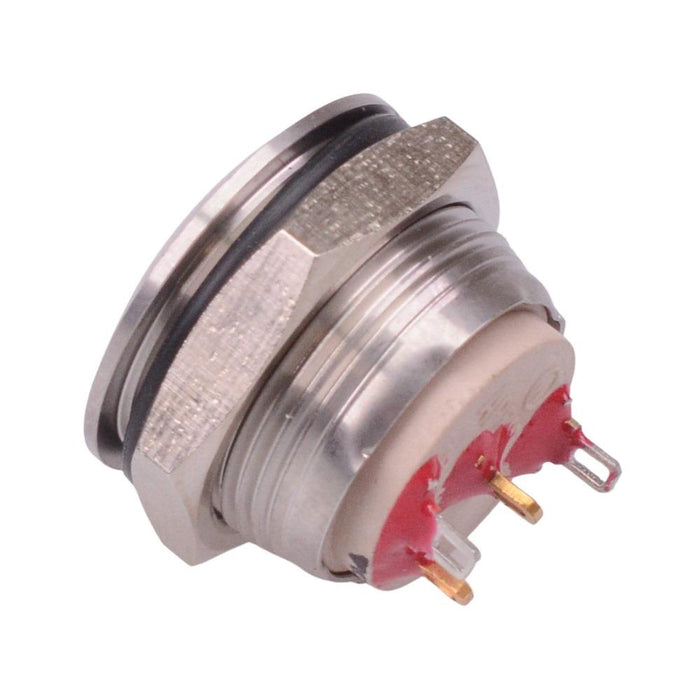

AV9SLD2482010K APEM Momentary 19mm Red/Green LED illuminated Vandal Push Button Switch IP67

by APEM
SKU 489931

MPN: AV9SLD2482010K

Availability:
80 in stock
Original price £24.24 - Original price £24.24
Original price
£24.24
£24.24 - £24.24
Current price £24.24
The AV9SLD2482010K is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing sealed to IP67, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Red / green LED illumination
  • LED voltage: red 1.95V, green 4V
  • Flat actuator with Cancel symbol
  • Long life
  • Solder terminals
  • Gold plated contacts
  • Stainless steel brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 50mA 24VDC
  • Panel thickness: 1-6mm
  • Dimensions: 18.0 x 22.0mm (length x diameter)
  • Specification
    Actuation Momentary
    Colour Red / Green
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 50mA 24VDC
    Current Rating 0.05A
    Electrical Life 1,000,000 Cycles
    Illuminated Yes
    Illumination Colour Red / Green
    Illumination Voltage Red 1.95V, Green 4V
    Material Stainless Steel
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -30°C to +70°C
    Panel Cut Out 19.2mm
    Panel Thickness 1-6mm
    Product Series AV
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 24VDC
