AV9SLD9086002 APEM Momentary 19mm Red LED illuminated Vandal Push Button Switch

by APEM
SKU 489933

MPN: AV9SLD9086002

Availability:
111 in stock
Original price £23.24 - Original price £23.24
Original price
£23.24
£23.24 - £23.24
Current price £23.24

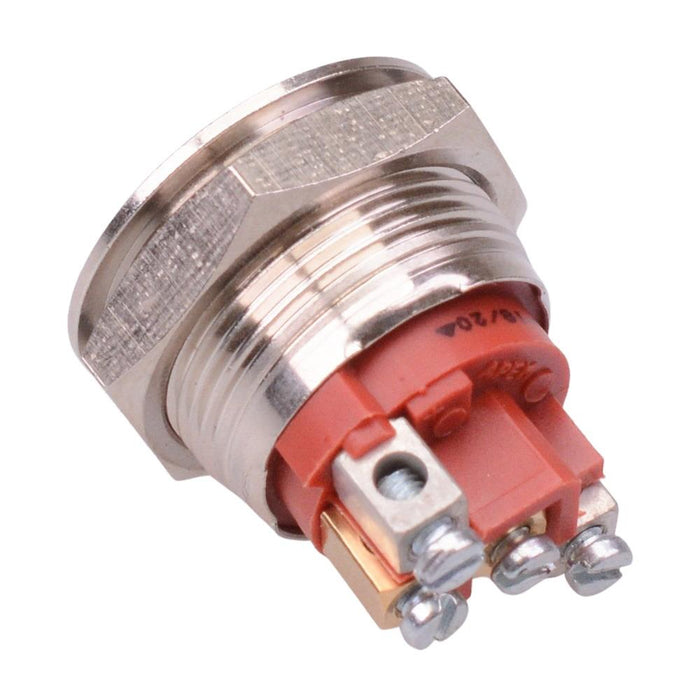

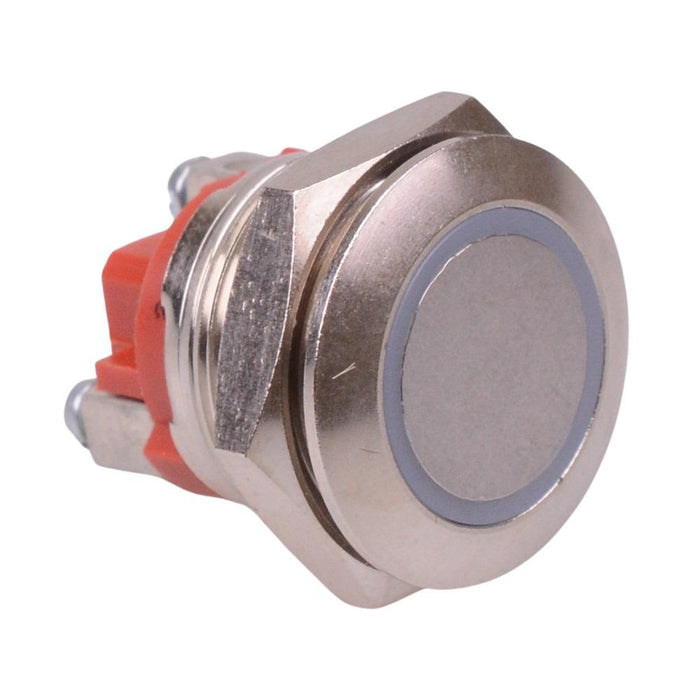

The AV9SLD9086002 is a security vandal resistant push button switch with illuminated ring and momentary NO/NC contacts. The switch features a stainless steel bushing, suitable for applications requiring a reliable and durable switch over a long lifespan.

  • Momentary NO/NC contacts
  • Red LED illumination
  • LED voltage: 1.95V
  • Flat actuator
  • Long life
  • Screw terminals
  • Gold plated contacts
  • Nickel plated brass brushing
  • IP67 protection level
  • Panel cut-out: 19.2mm
  • Rating: 50mA 24VDC
  • Panel thickness: 1-6mm
  • Dimensions: 27.1 x 22.0mm (length x diameter)
  • Specification
    Actuation Momentary
    Colour Red
    Contact Configuration SPST
    Contact Material Gold Plated
    Contact Rating 50mA 24VDC
    Current Rating 0.05A
    Electrical Life 1,000,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 1.95V
    Material Nickel Plated Brass
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -30°C to +70°C
    Panel Cut Out 19.2mm
    Panel Thickness 1-6mm
    Product Series AV
    Switch Operation Off-(On)
    Terminal Type Screw
    Voltage Rating 24VDC
