AVD302NUR 30mm Emergency Stop Switch 40mm Mushroom 2NC IDEC
by IDEC
SKU 493171
MPN: AVD302NUR
Availability:
10 in stock
Original price
£58.98
-
Original price
£58.98
Original price
£58.98
£58.98
-
£58.98
Current price
£58.98

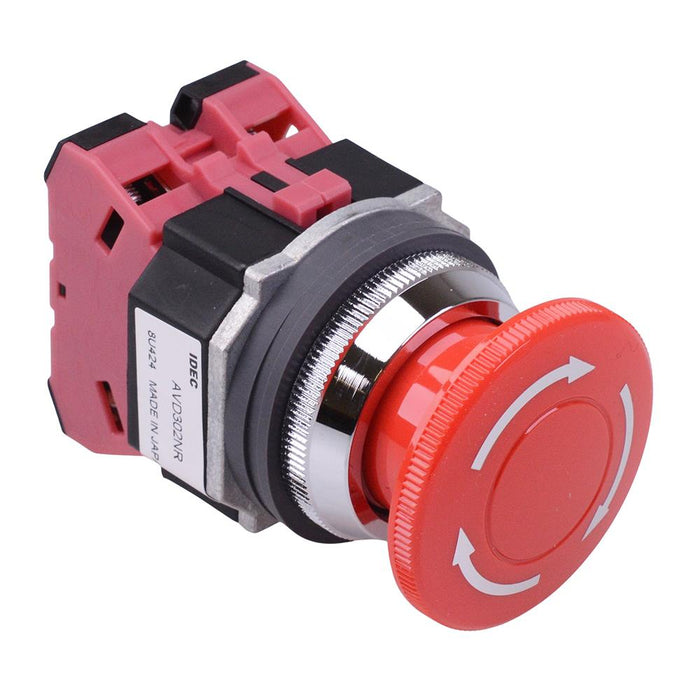

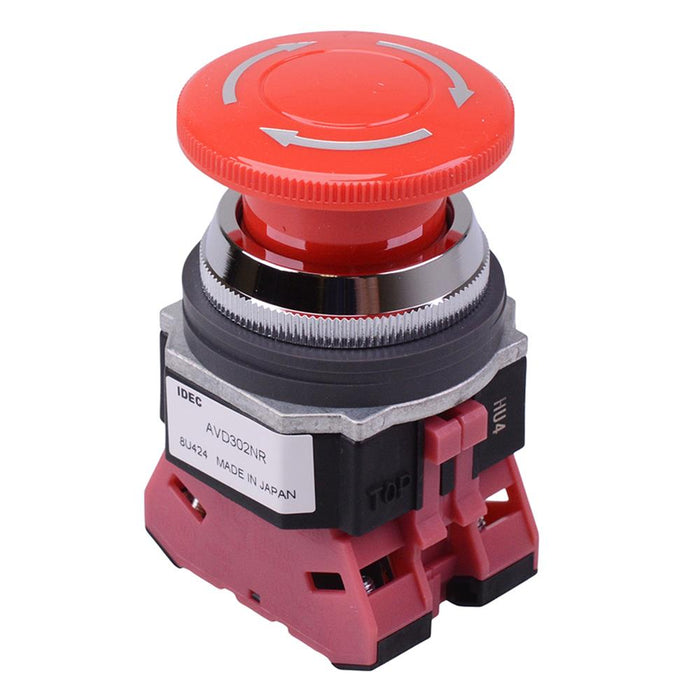

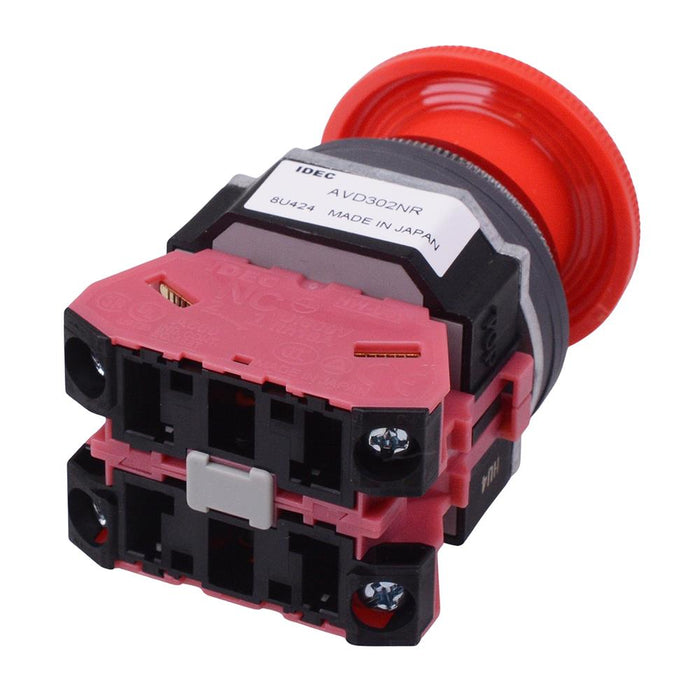

The AVD302NR is a heavy duty emergency stop switch, featuring a diecast zinc mounting thread and 30mm panel cut-out. The switch features a 40mm mushroom head and comes with 2NC contacts. The switch is internationally approved and the ease of installation makes it suitable for a range of industrial applications.
2NC contacts 40mm mushroom head Panel cut-out: 30mm Panel thickness: 0.8 to 7.5mm Voltage rating: 600V Current rating: 10A M3.5 screw terminals Protection level: IP65
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Contact Configuration | 2NC |
| Contact Material | Silver |
| Contact Rating | 10A 600V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 30.5mm |
| Panel Thickness | 0.8-7.5mm |
| Product Series | TWND |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 600V |
