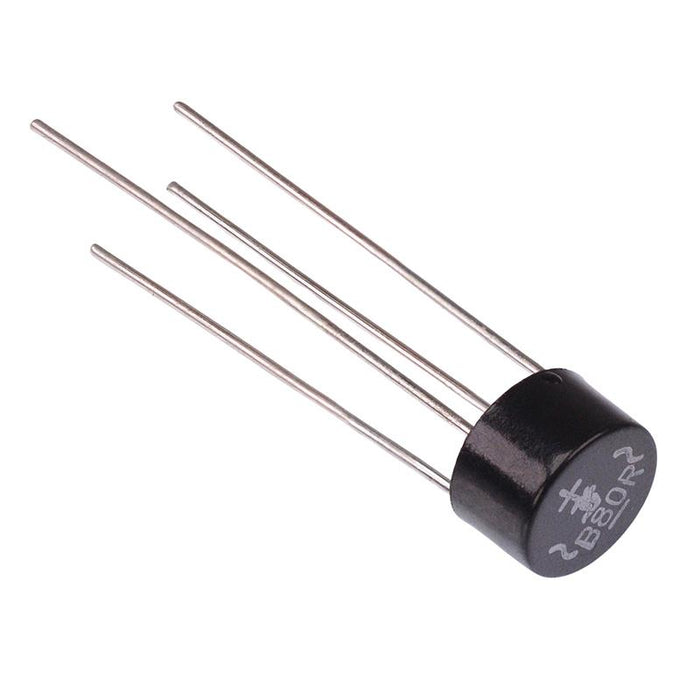

B80R Bridge Rectifier Diode 2A 160V
by Diotec
SKU 486263
MPN: B80R
Availability:
176 in stock
Original price
£0.38
-
Original price
£0.38
Original price
£0.38
£0.38
-
£0.38
Current price
£0.38
B80R bridge rectifier diode housed in a flame retardant WOG package featuring a low forward voltage drop suitable for applications including mains rectification, power supplies and commercial uses.
2A maximum rectified output current 160V repetitive peak reverse voltage 10A repetitive peak forward current Dimensions: 9.0 x 5.1mm (diameter x height)
Specification
| Average Rectified Current | 2A |
| Back Order Lead Time | 5 Days |
| Body Dimensions | 9.0 x 5.1mm (Diameter x Height) |
| Forward Continuous Current | 2A |
| Lead Dimensions | 0.8mm |
| Mounting Style | Through Hole |
| Operating Temperature | -50°C to 150°C |
| Package | WOG |
| Packaging | Bulk |
| Peak Reverse Voltage | 160V |
| Peak Surge Current | 50A |
