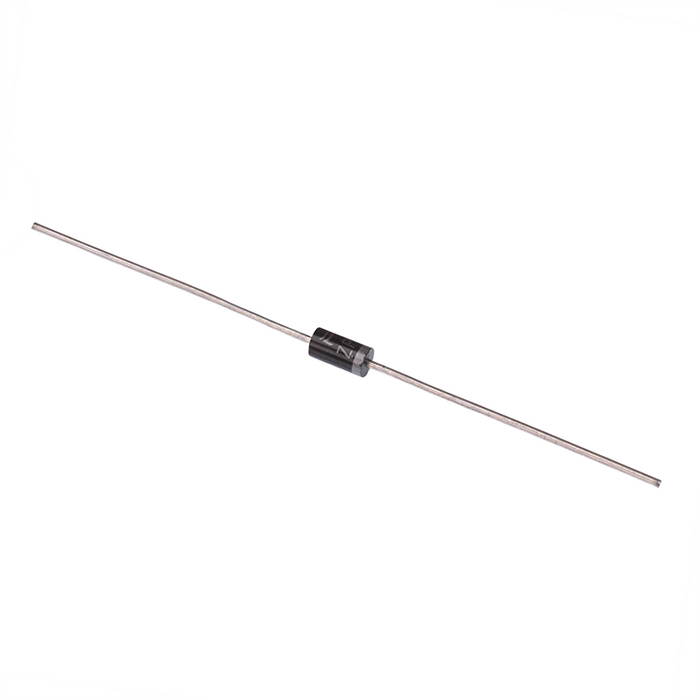

BA159 Rectifier Diode 1A 1000V
by Diotec
SKU 486269
MPN: BA159
Availability:
973 in stock
Original price
£0.12
-
Original price
£0.12
Original price
£0.12
Inc VAT
£0.12
-
£0.12
Current price
£0.12
Inc VAT
The BA159 is a standard recovery rectifier diode featuring high forward surge current and voltage drop. The diode is suitable for rectification of medium frequencies and commercial applications.
DO-41 package Repetitive peak reverse voltage: 1000V Maximum average forward rectified current: 1A Peak forward surge current: 40A
Specification
| Average rectified current | 1A |
| Back order lead time | 5 Days |
| Body dimensions | 5.1 x 2.6mm (Length x Diameter) |
| Lead dimensions | 0.77mm |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -50°C to 150°C |
| Package | DO-41 |
| Packaging | Tape |
| Peak reverse voltage | 1000V |
| Peak surge current | 40A |
