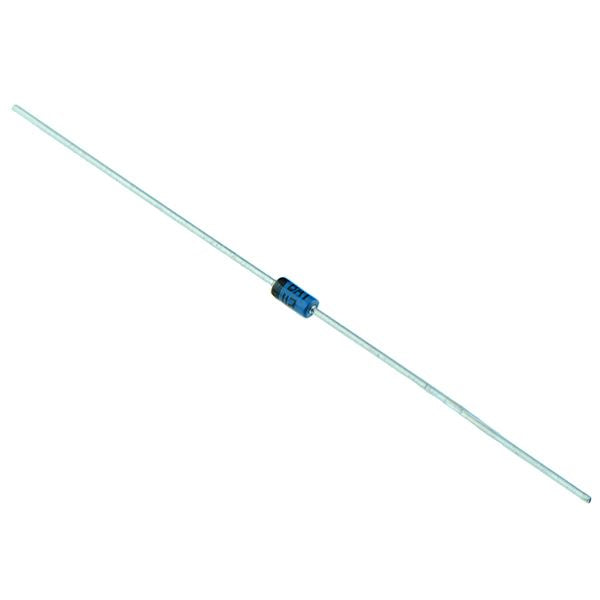

BAT48 Small Signal Schottky Diode 40V 350mA
by ST
SKU 480686
MPN: BAT48
Availability:
934 in stock
Original price
£0.09
-
Original price
£0.09
Original price
£0.09
Inc VAT
£0.09
-
£0.09
Current price
£0.09
Inc VAT
The BAT48 is a small signal schottky diode featuring a very low turn-on voltage and fast switching capability. The diode feaures low leakage current losses and neglibible switching losses making them suitable for general purpose applications.
Low forward and reverse recovery times Extremely fast switching Low capacitance DO-35 package Maximum repetitive reverse voltage: 40V Forward current: 350mA Maximum forward voltage: 400mV
Specification
| Back order lead time | 5 Days |
| Body dimensions | 3.4 x 1.5mm (Length x Diameter) |
| Forward continuous current | 350mA |
| Lead dimensions | 12.7 x 0.55mm (Length x Diameter) |
| Moq | 10 |
| Mounting style | Through Hole |
| Operating temperature | -40°C to 125°C |
| Package | DO-35 |
| Packaging | Tape |
| Peak reverse voltage | 40V |
| Peak surge current | 7.5A |
| Power dissipation | 430mW |
