Battery Indicator / Hour Meter Panel Mount
SKU 490504
MPN: SE7087
Availability:
12 in stock
Original price
£30.05
-
Original price
£30.05
Original price
£30.05
£30.05
-
£30.05
Current price
£30.05

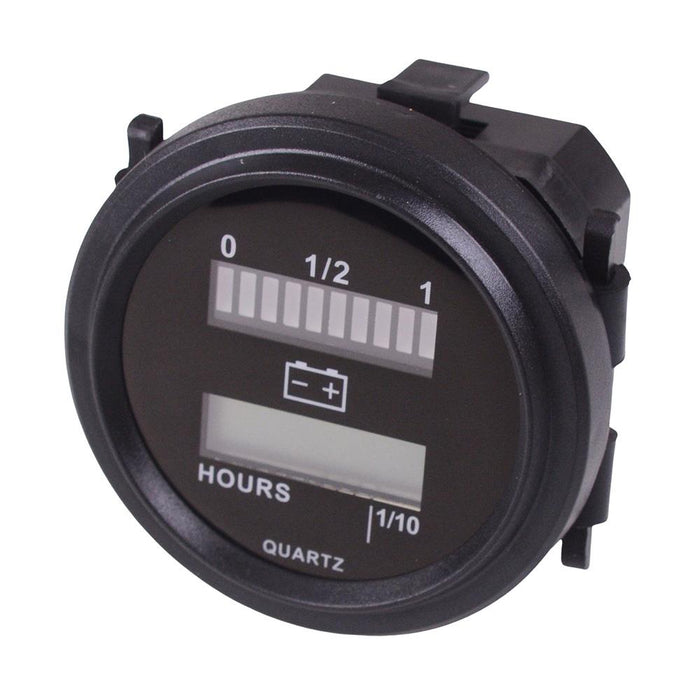

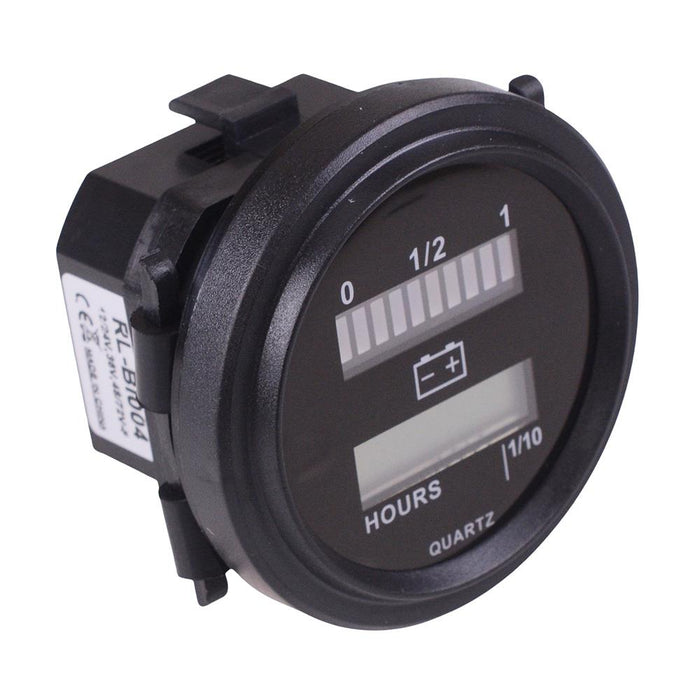

Circular battery level indicator with hour meter featuring a bright multi-colour LED screen. The meter features a 10 segment display showing a colour corresponded battery level. The hour meter is capable of measuring 0-999,999 hours, with a 0.1 hour resolution under 99,999 hours. The meter is suitable for a wide range of panel applications including automotive, industrial, instrumentation and testing.

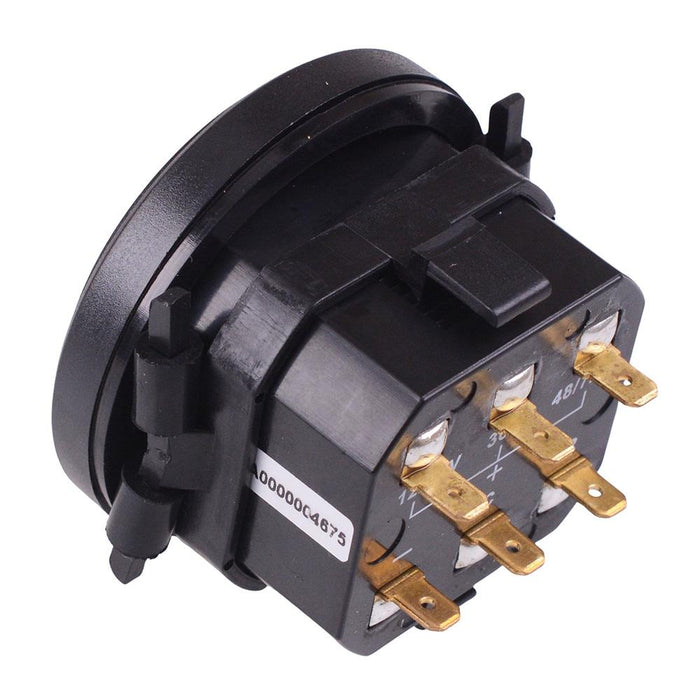

10 bar battery status 100-0% (7 green, 1 yellow, 1 yellow flashing, 1 red + 1 yellow flashing) LCD hour meter 0-99,999.9 (0.1 resolution), 100,000-999,999 (1 hour resolution) Reset function Operating voltage: 12V/24V/36V/48V/72V (+/- 25%) Operating current: 20mA Panel cut-out: 43 x 39mm (width x height) Dimensions: 49 x 60mm (depth x diameter) Includes instructions and crimp terminals
Specification
Back Order Lead Time | 30 Days |
LED Colour | Green / Yellow / Red |
MOQ | 1 |
Mounting Type | Panel Mount |
Operating Current | 20mA |
Panel Cut Out | 43 x 39mm |
Supply Voltage | 12V/24V/36V/48V/72V |
Termination Method | Quick Connect |
