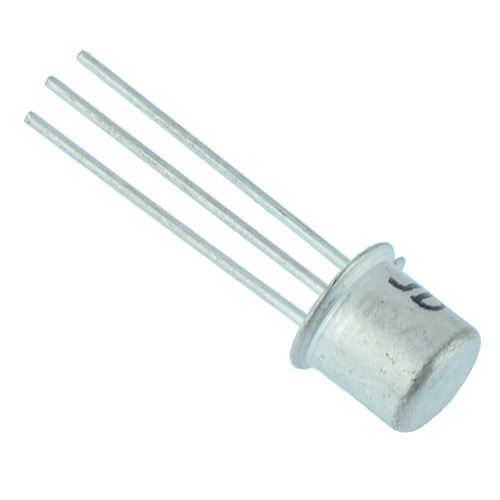

BC108A Bipolar NPN 25V Transistor TO18

SKU 480048

MPN: B108A

86 in stock
Original price £0.86 - Original price £0.86
Original price
£0.86 Inc VAT
£0.86 - £0.86
Current price £0.86 Inc VAT
The BC108A is a bipolar low power transistor featuring a planar construction housed in a TO18 package.

  • Collector emitter voltage: 25V
  • Collector current: 200mA
  • TO18 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 200mA
    Collector emitter voltage 25V
    Dc current gain 110-220
    Maximum operating temperature 200°C
    Mounting type Through Hole
    Package TO18
    Power dissipation 0.2/0.75W
    Transistion frequency 150MHz
    Type NPN
