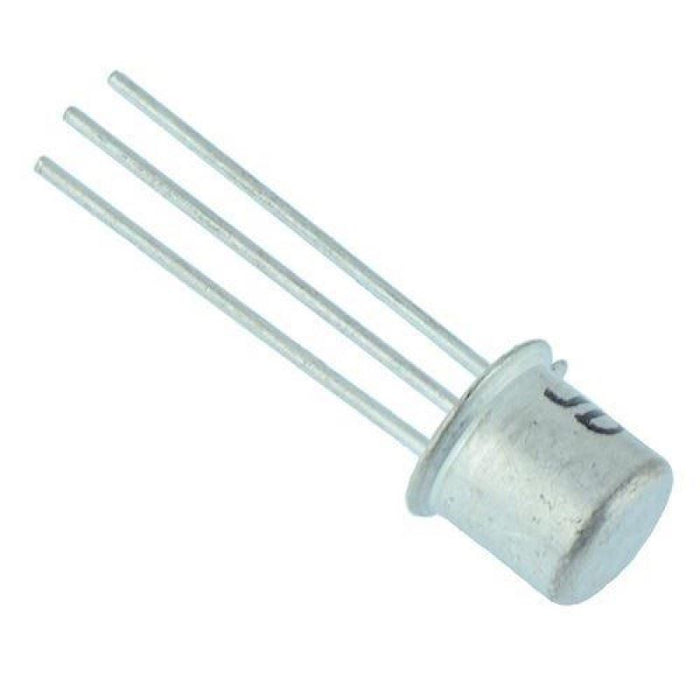

BC177B Bipolar PNP 45V Transistor TO18
by CDIL
SKU 480916
MPN: BC177B
Availability:
135 in stock
Original price
£0.77
-
Original price
£0.77
Original price
£0.77
£0.77
-
£0.77
Current price
£0.77
The BC177B is a general purpose medium power transistor with planar construction, suitable for low noise general purpose audio applications.
PNP polarity Collector emitter voltage: 45V Collector base voltage: 50V Collector current: 200mA Power: 0.75W Transition frequency: 200MHz TO18 package
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 50V |
| Collector Current | 200mA |
| Collector Emitter Voltage | 45V |
| DC Current Gain | 120-460 |
| Maximum Operating Temperature | 200°C |
| Mounting Type | Through Hole |
| Package | TO18 |
| Power Dissipation | 300/750mW |
| Transistion Frequency | 200MHz |
| Type | PNP |
