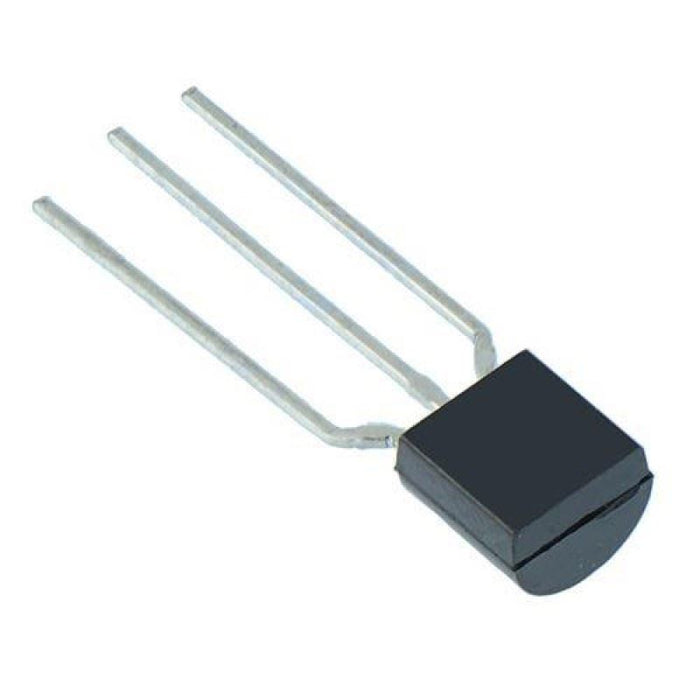

BC183 Bipolar NPN 30V Transistor TO92

by CDIL
SKU 480924

MPN: BC183

Availability:
103 in stock
Original price £0.20 - Original price £0.20
Original price
£0.20 Inc VAT
£0.20 - £0.20
Current price £0.20 Inc VAT
The BC183 is a general purpose medium power transistor with planar construction, suitable for low noise general purpose audio applications.

  • NPN polarity
  • Collector emitter voltage: 30V
  • Collector base voltage: 45V
  • Collector current: 600mA
  • Power: 1W
  • Transition frequency: 120MHz
  • TO92 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 45V
    Collector current 100mA
    Collector emitter voltage 30V
    Dc current gain 120-800
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package TO92
    Power dissipation 0.35/1W
    Transistion frequency 120MHz
    Type NPN
