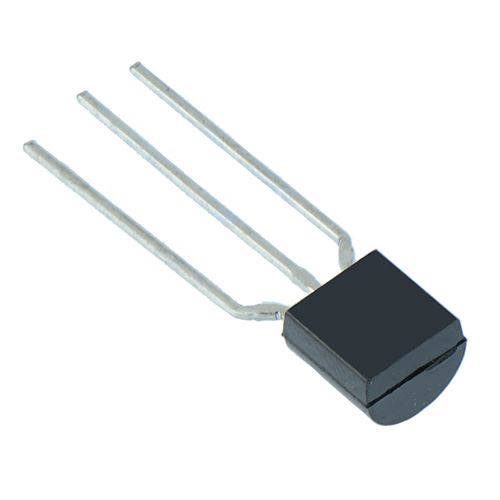

BC547B Bipolar NPN 45V Transistor TO92

BC547B Bipolar NPN 45V Transistor TO92

by Diotec
SKU 480054

MPN: BC547B

Availability:
444 in stock
£0.15 - £0.15
£0.15
£0.15
£0.15 - £0.15
£0.15
The BC547B is a bipolar low power NPN silicon transistor featuring a planar construction and housed in a TO92 package.

  • Collector emitter voltage: 45V
  • Collector current: 100mA
  • Power dissipation: 500mW
  • Current gain: 200
  • TO92 package
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 7
    Collector Base Voltage 50V
    Collector Current 100mA
    Collector Emitter Voltage 45V
    DC Current Gain 200
    Maximum Operating Temperature 150°C
    MOQ 10
    Mounting Type Through Hole
    Package TO92
    Power Dissipation 500mW
    Type NPN
