BC547C Bipolar NPN 45V Transistor TO92
by Diotec
SKU 480055
MPN: BC547C
Availability:
612 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
Inc VAT
£0.14
-
£0.14
Current price
£0.14
Inc VAT

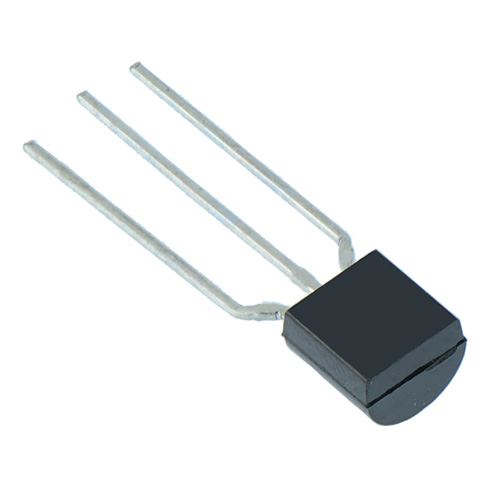

The BC547C is a bipolar low power NPN silicon transistor featuring a planar construction and housed in a TO92 package.
Collector emitter voltage: 45V Collector current: 100mA Power dissipation: 500mW Current gain: 400 TO92 package
Specification
| Back order lead time | 5 Days |
| Collector base voltage | 50V |
| Collector current | 100mA |
| Collector emitter voltage | 45V |
| Dc current gain | 400 |
| Maximum operating temperature | 150°C |
| Moq | 5 |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 500mW |
| Type | NPN |
