BC549B NPN Bipolar Transistor 30V TO92
by Diotec
SKU 480348
MPN: BC549B
Availability:
576 in stock
Original price
£0.14
-
Original price
£0.14
Original price
£0.14
Inc VAT
£0.14
-
£0.14
Current price
£0.14
Inc VAT

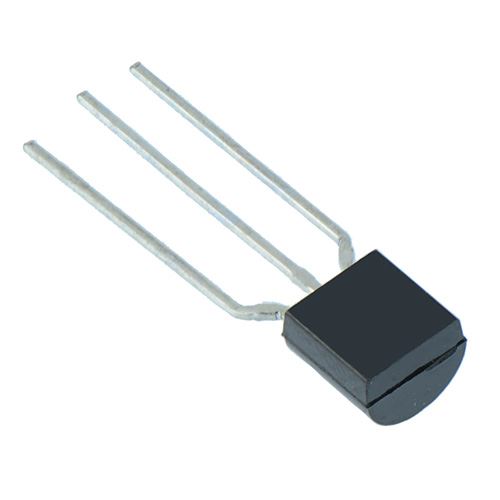

The BC549B is a NPN low power bipolar transistor featuring a TO92 package, suitable for switching and amplifier applications.
Collector emitter voltage: 30V Power dissipation: 500mW Package: TO92 DC current gain: 200
Specification
| Back order lead time | 5 Days |
| Collector base voltage | 30V |
| Collector current | 100mA |
| Collector emitter voltage | 30V |
| Maximum operating temperature | 150°C |
| Moq | 5 |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 500mW |
| Type | NPN |
