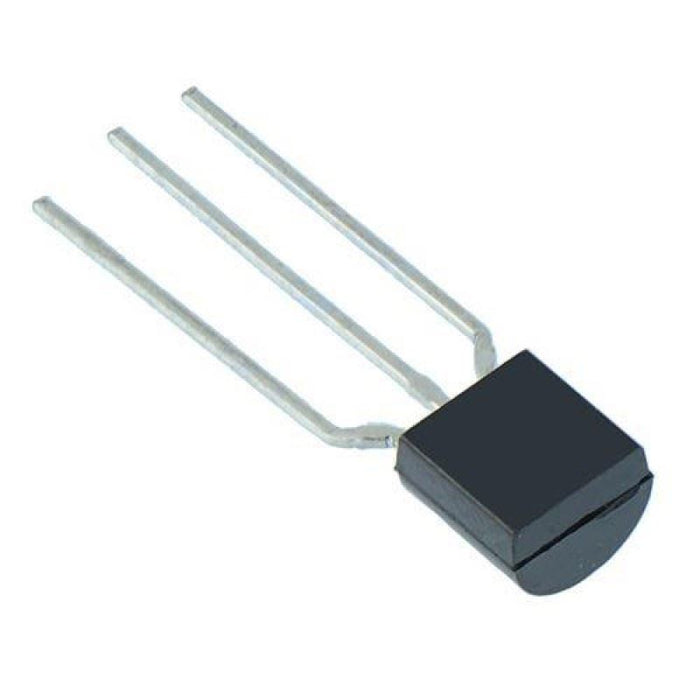

BC550CTA Bipolar NPN Transistor 45V 100mA TO92
by Fairchild
SKU 480709
MPN: BC550CTA
Availability:
1086 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
£0.18
-
£0.18
Current price
£0.18
The BC550CTA is a general purpose NPN transistor housed in a TO92 package, suitable for signal processing, switching and amplication applications.
Collector emitter voltage: 45V Collector base voltage: 50V Emitter base voltage: 5V Collector current: 100mA Power dissipation: 500mW
Specification
| Back Order Lead Time | 5 Days |
| Collector Base Voltage | 50V |
| Collector Current | 100mA |
| Collector Emitter Voltage | 45V |
| Maximum Operating Temperature | 150°C |
| MOQ | 5 |
| Package | TO92 |
| Power Dissipation | 500mW |
| Type | NPN |
