BC558B Bipolar PNP 30V Transistor TO92

by Diotec
SKU 480060


31 in stock
Original price £0.15 - Original price £0.15
Original price
£0.15 Inc VAT
£0.15 - £0.15
Current price £0.15 Inc VAT

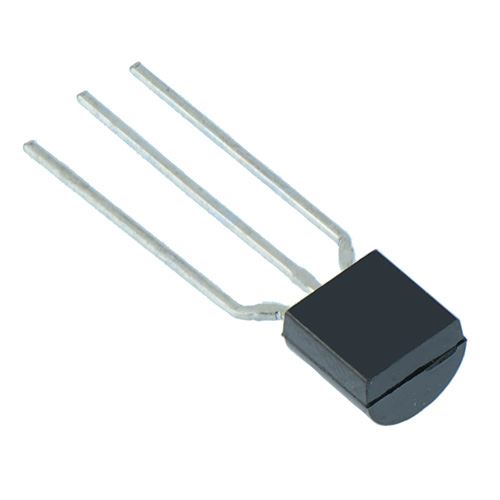

The BC558B is a bipolar low power PNP silicon transistor featuring a planar construction and housed in a TO92 package.

  • Collector emitter voltage: 30V
  • Collector current: 100mA
  • Power dissipation: 500mW
  • Current gain: 200
  • TO92 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 100mA
    Collector emitter voltage 30V
    Dc current gain 200
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Through Hole
    Package TO92
    Power dissipation 500mW
    Transistion frequency 150MHz
    Type PNP
