BC848A 30V NPN Small Signal Transistor SOT23

SKU 551591


Out of stock
Sold out
Original price £0.19 - Original price £0.19
Original price
£0.19 Inc VAT
£0.19 - £0.19
Current price £0.19 Inc VAT

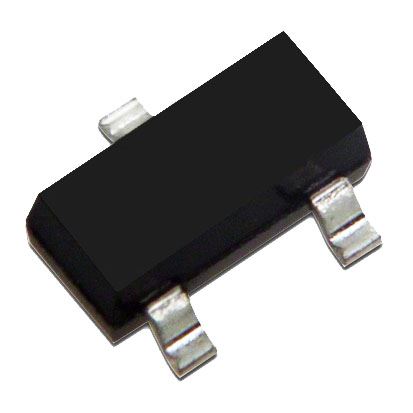

The BC848A transistor is an NPN small signal transistor produced in SOT23 casing, ideally suited for automatic insertion. For further technical specifications please refer to the attached datasheet.

  • For switching and AF Amplifier Applications
  • 110hFE dc current gain
  • 300 mW Power
  • Lead Free & Fully RoHS compliant
  • 30V 0.1A SOT23
  • Specification
    Back order lead time 5 Days
    Collector base voltage 30V
    Collector current 100mA
    Collector emitter saturation voltage 600mV
    Collector emitter voltage 30V
    Dc current gain 110
    Maximum operating temperature 150°C
    Moq 5
    Mounting type Surface Mount
    Package SOT23
    Power dissipation 300mW
    Transistion frequency 300MHz
    Type NPN
