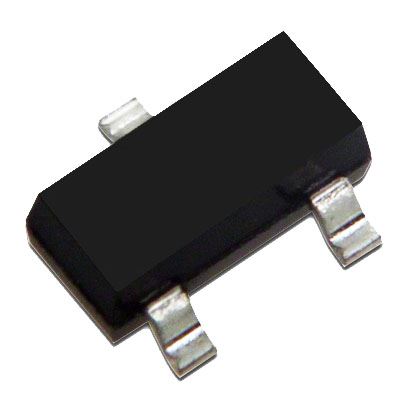

BC856A 65V PNP Small Signal Transistor SOT23
by Diodes Zetex
SKU 551594
MPN: BC856A
Availability:
199 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
Inc VAT
£0.19
-
£0.19
Current price
£0.19
Inc VAT
The BC856A transistor is a PNP small signal transistor produced in SOT23 casing, ideally suited for automatic insertion. For further technical specifications please refer to the attached datasheet.
Specification
Back order lead time | 5 Days |
Collector base voltage | 80V |
Collector current | 100mA |
Collector emitter saturation voltage | 650mV |
Collector emitter voltage | 65V |
Dc current gain | 125 |
Maximum operating temperature | 150°C |
Moq | 5 |
Mounting type | Surface Mount |
Package | SOT23 |
Power dissipation | 300mW |
Transistion frequency | 200MHz |
Type | PNP |
