Black 12-Pole Kwik Snap Terminal Block 32A 450V
SKU 482166
MPN: 482166
Availability:
341 in stock
Original price
£0.56
-
Original price
£0.56
Original price
£0.56
£0.56
£0.56
-
£0.56
Current price
£0.56

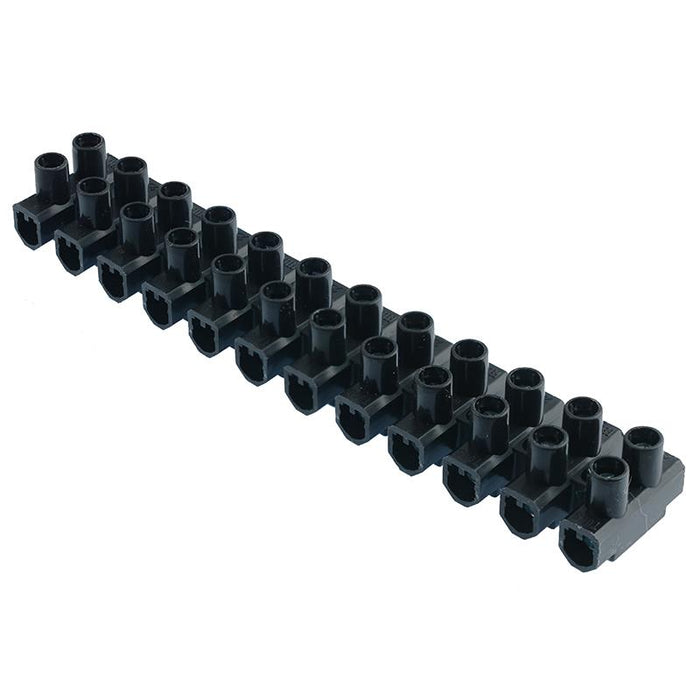

Black 32A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 10mm Maximum conductor size: 6mm² Rating: 32A 450V Dimensions: 14 x 20 x 116.5mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back Order Lead Time | 150 |
| Colour | Black |
| Current Rating | 32A |
| Housing Material | Polypropylene |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 10mm |
| Termination Method | Screw |
| Voltage Rating | 450VAC |
| Wire Range | 6mm² max |
