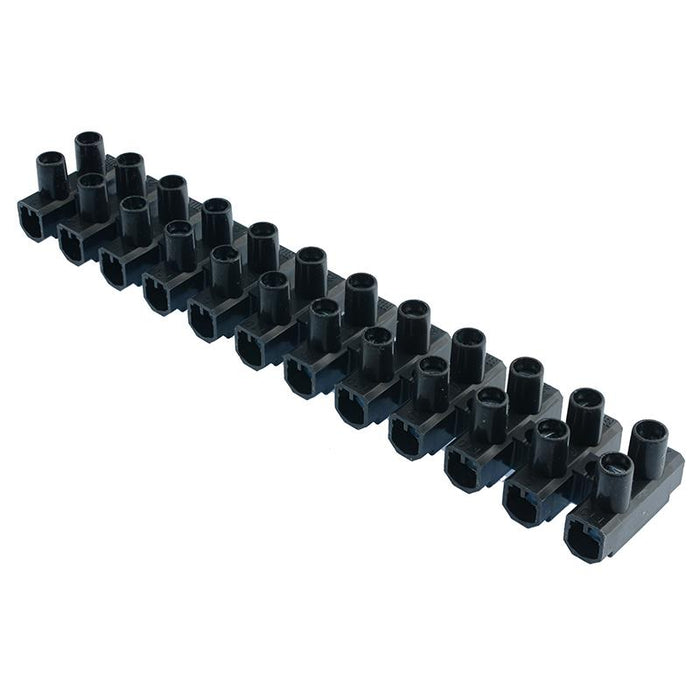

Black 12-Pole Kwik Snap Terminal Block 57A 450V
SKU 482167
MPN: 482167
Availability:
333 in stock
Original price
£0.70
-
Original price
£0.70
Original price
£0.70
£0.70
£0.70
-
£0.70
Current price
£0.70
Black 57A 12 pole pillar terminal block featuring Kwik Snap technology allowing the poles to be easily separated without the need for tools. The terminal strips are manufactured from UL94V-2 polypropylene with steel inserts, providing the user a reliable and low cost terminal block assembly solution.
Pitch: 12mm Maximum conductor size: 10mm² Rating: 57A 450V Dimensions: 16.3 x 23.4 x 139.3mm (H x W x L) Zinc plated steel inserts VDE approved and rated to T85-110 Complies with IEC/EN60998-1,60998-2-1
Specification
| Back Order Lead Time | 150 |
| Colour | Black |
| Current Rating | 57A |
| Housing Material | Polypropylene |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 12 |
| Pitch | 12mm |
| Termination Method | Screw |
| Voltage Rating | 450VAC |
| Wire Range | 10mm² max |
