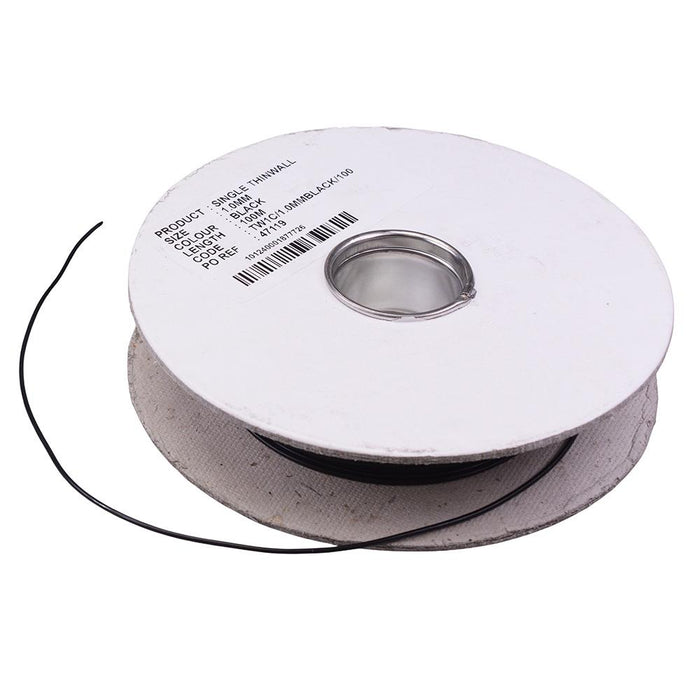

Black 1mm Thin Wall Cable 32/0.2mm 100M Reel 16.5A

SKU 490606

MPN: TW1K100

Availability:
10 in stock
Original price £26.22 - Original price £26.22
Original price
£26.22
£26.22 - £26.22
Current price £26.22
Black 1mm² thin wall single core cable featuring 32/0.2mm stranding and a copper conductor. The cable is insulated by lightweight PVC providing excellent weight savings over standard PVC cable. The insulation provides protection against moisture, oil, petrol, diesel and other corossive substances. The narrow insulation and high current capacity makes it suitable for a wide range of automotive, marine and other low voltage applications.

  • Reel size: 100m
  • Stranding: 32/0.2mm
  • Insulation material: thin wall PVC
  • Conductor material: copper
  • Overall diameter: 2.1mm
  • Conductor cross section: 1mm²
  • Maximum current: 16.5A
  • Voltage rating: 60VDC
  • Operating temperature: -40°C to 105°C
  • Approvals: ISO6722, Class B
  • Specification
    Back Order Lead Time 7 Days
    Colour Black
    Conductor Cross Section 1mm²
    Conductor Material Copper
    Conductor Stranding 32/0.2mm
    Current Rating 16.5A
    Insulation Material PVC
    Length 100M
    MOQ 1
    Number of Cores 1
    Operating Temperature -40°C to 105°C
    Overall Diameter 2.1mm
    Voltage Rating 60VDC
