Black 4mm Binding Post 10A SCI R1-09

by SCI
SKU 550010

MPN: R1-09 BLACK

Availability:
8 in stock
Original price £0.86 - Original price £0.86
Original price
£0.86 Inc VAT
£0.86 - £0.86
Current price £0.86 Inc VAT

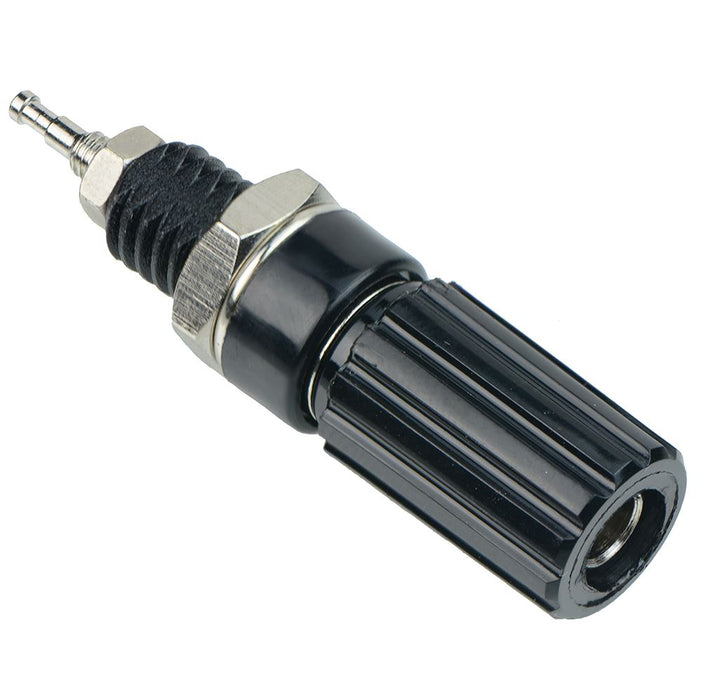

4mm Black Binding Post Panel Mount Socket suitable for panel mounting.

  • 4mm diameter socket
  • Colour: Black
  • Rating: 10A 250VAC
  • Height above panel: 24-30mm
  • 11.5mm Diameter
  • Length: 50mm
  • Cross hole diameter: 2.1mm
  • Panel cut-out: 8.2mm
  • Specification
    Back order lead time 120 Days
    Colour Black
    Contact material Nickel Plated Copper
    Current rating 10A
    Housing material Nylon
    Length 50mm
    Mounting type Panel
    Number of poles 1
    Operating temperature -20°C to +80°C
    Panel cut out 8.2mm
    Termination method Solder
    Voltage rating 250VAC
