Black Large On-Off Rectangle Rocker Switch DPST
SKU 131002
MPN: 131002
Availability:
461 in stock
Original price
£1.26
-
Original price
£1.26
Original price
£1.26
£1.26
£1.26
-
£1.26
Current price
£1.26

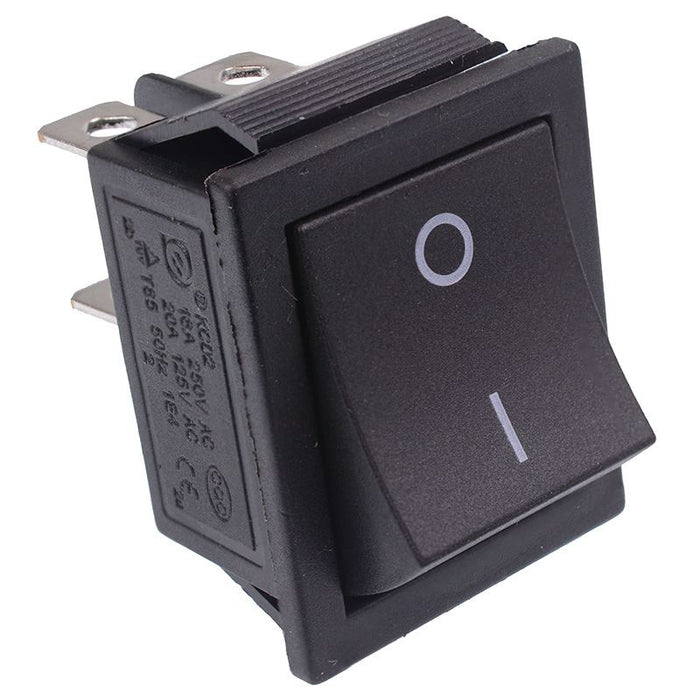

Rectangle rocker switch with DPST contacts suitable for applications where a higher rated switch is required.
On-off action DPST contacts 6.3mm quick connect terminals 28.5 x 21.5mm panel cut-out Maximum current: 15A Maximum voltage: 250VAC Dimensions: 35.5 x 31 x 25.3mm (Height x Length x Width)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPST |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 28.5 x 21.5mm |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
