Black Off-(On) 16mm Metal Round Push Button Switch IP65 SPST
SKU 490301
MPN: HBGQ12/16B-10/J/T/H
Availability:
34 in stock
Original price
£3.41
-
Original price
£3.41
Original price
£3.41
£3.41
£3.41
-
£3.41
Current price
£3.41

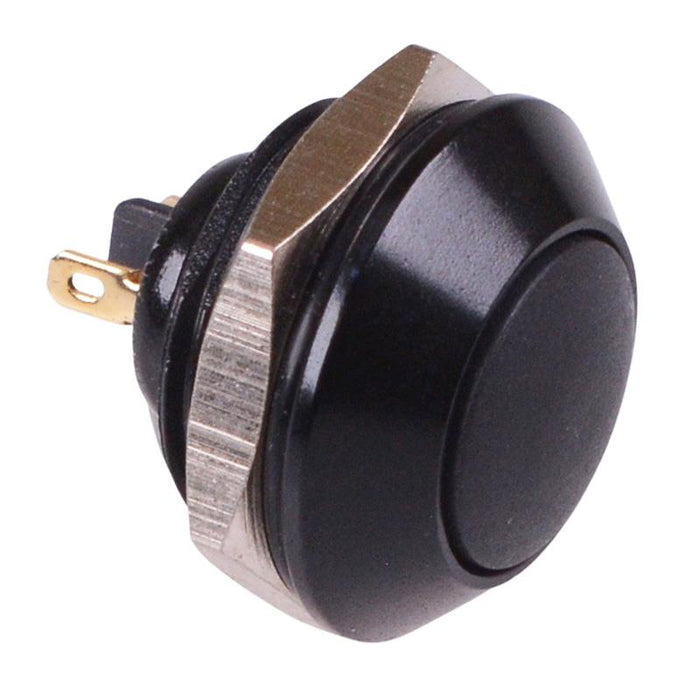

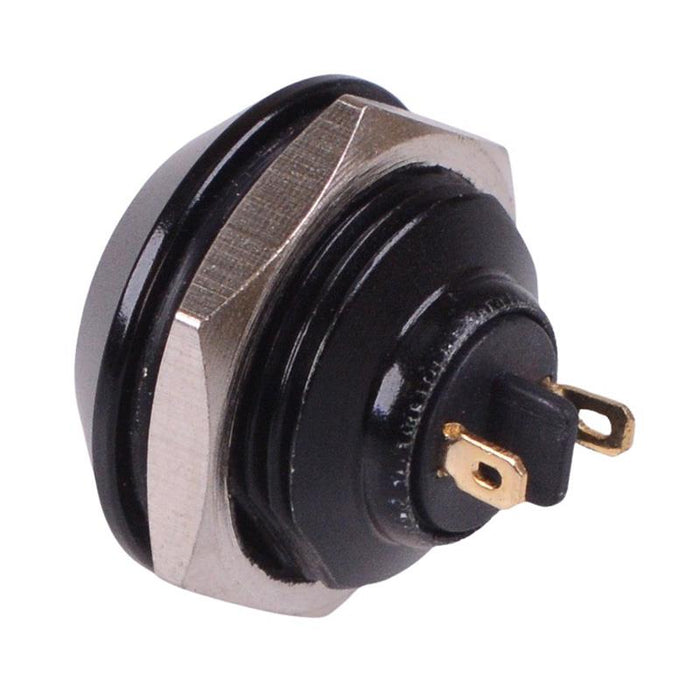

Black momentary push button switch featuring a round actuator and normally open contacts. The switch features a stainless steel housing and is suitable for mounting in 16mm diameter cut-outs. The switch is suitable for a wide range of applications including automotive, control panels, industrial, appliances etc.
Momentary operation SPST-NO contacts IP65 protection rating Solder terminals Panel cut-out: 16mm Panel thickness: 4mm max Rating: 3A 250V Dimensions: 20.0 x 19.8mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +65°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 4mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
