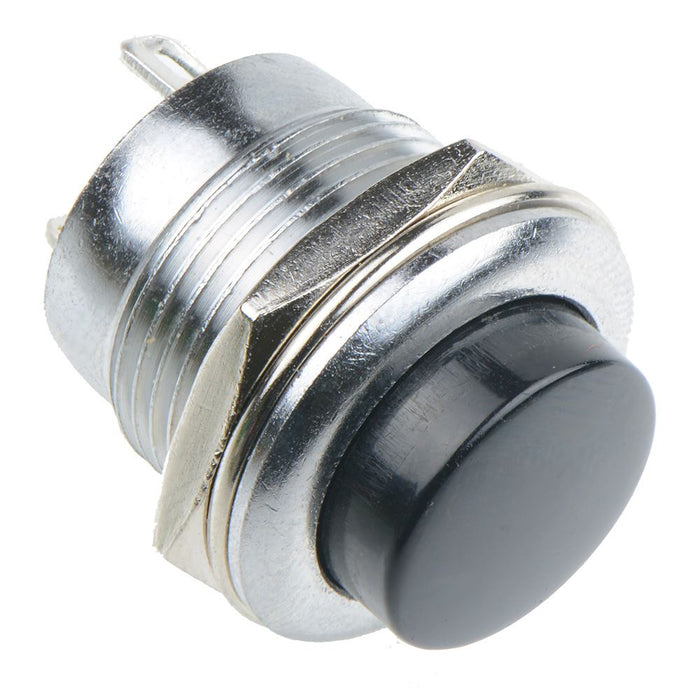

Black Off-(On) Metal Low Profile 16mm Round Momentary Push Button Switch 3A SPST
by Canal
SKU 550393
MPN: PB-02-MM-B
Availability:
30 in stock
Original price
£2.15
-
Original price
£2.15
Original price
£2.15
£2.15
-
£2.15
Current price
£2.15
High quality metal push button switch with Off-(On) momentary action. Suitable for panel mounting the switch comes with a nickel plated brass body and locking nut. Can be used for a wide variety of applications.
Colour: Black Button Rating: 6A 125VAC, 3A 250VAC Off-(On) momentary action Nickel Plated Metal Housing 16mm Panel Cut Out 12.9mm Button Diameter Solder Lug Terminals SPST contacts 6mm maximum panel thickness
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 6A 125VAC, 3A 250VAC |
| Current Rating | 6A @ 125VAC |
| Electrical Life | 10000 Cycles Min |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +85°C |
| Panel Cut Out | 16mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
