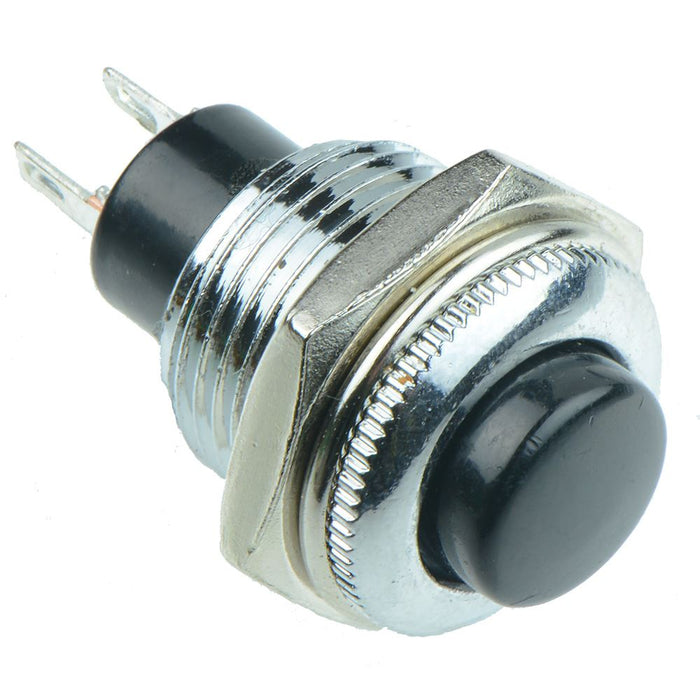

Black Off-(On) Metal Low Profile Round 12mm Momentary Push Button Switch 1.5A SPST
by Canal
SKU 550398
MPN: PB-01-MM-B
Availability:
960 in stock
Original price
£1.93
-
Original price
£1.93
Original price
£1.93
£1.93
£1.93
-
£1.93
Current price
£1.93
Round push button switch with a Off-(On) action making it suitable for a range of uses.
Colour: Black Button Rating: 3A 125VAC, 1.5A 250VAC Off-(On) momentary operation Metal housing 12.7mm Panel Cut Out 8mm Button Diameter Solder Lug Terminals SPST contacts
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 3A 125VAC, 1.5A 250VAC |
| Current Rating | 3A @ 125VAC |
| Electrical Life | 10000 Cycles Min |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +85°C |
| Panel Cut Out | 12.7mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
