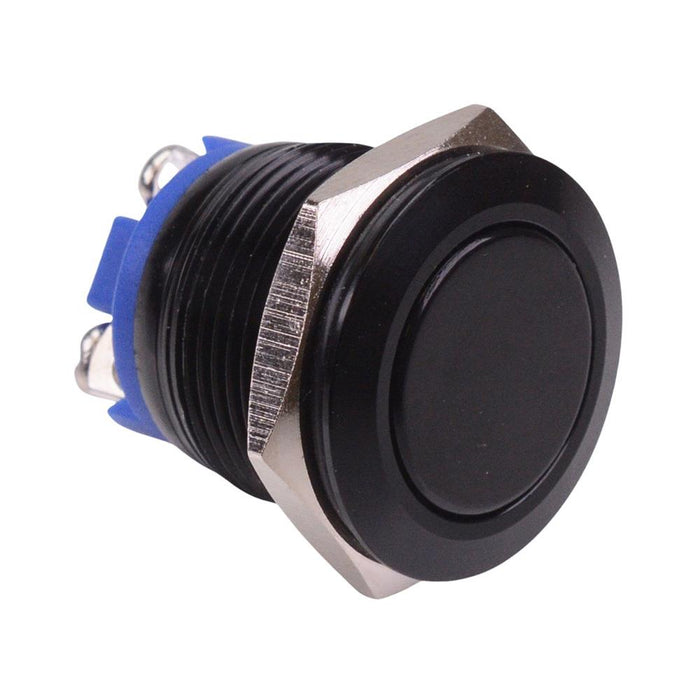

Black Off-(On) Momentary 19mm Push Button Switch SPST Screw
SKU 491058
MPN: SL1M19A-FS-2PB
Availability:
23 in stock
Original price
£3.92
-
Original price
£3.92
Original price
£3.92
£3.92
£3.92
-
£3.92
Current price
£3.92

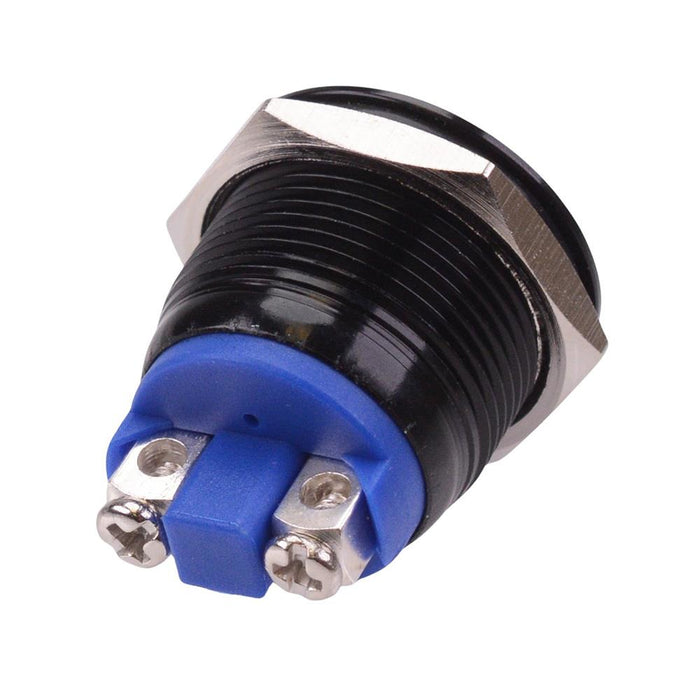

Black 19mm momentary push button switch featuring SPST normally open contacts and screw terminals. The switch is manufactured from zinc and is sealed to IP65, suitable for a wide range of applications.
Off-(On) momentary function SPST contacts Screw terminals Rating: 2A 36VDC Panel cut-out: 19mm Dimensions: 25.5 x 21.4mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 2A 36VDC |
| Current Rating | 2A |
| Electrical Life | 100,000 Cycles |
| Illuminated | No |
| Material | Zinc |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Panel Thickness | 7mm |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 36VDC |
